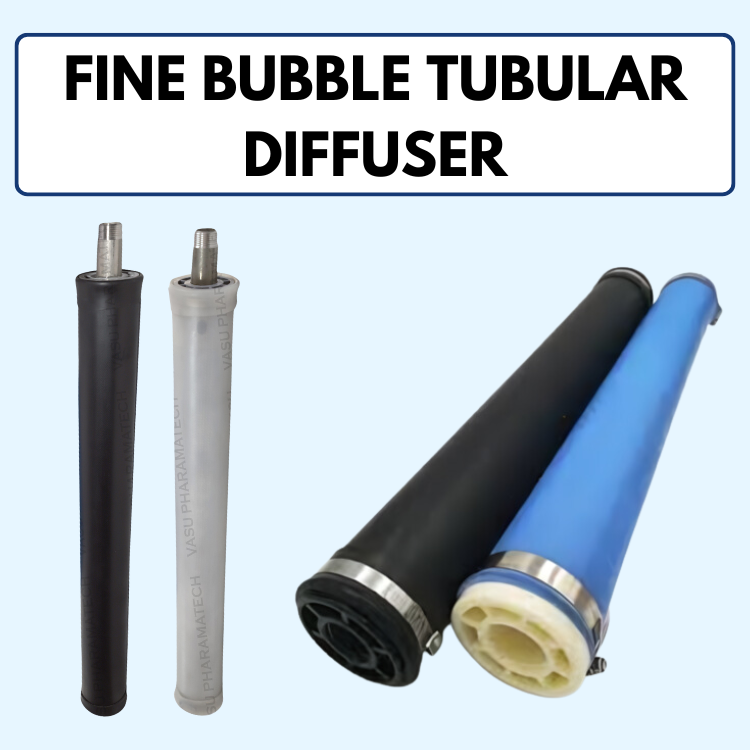

Silicon Fine Bubble Tube Diffuser

SPECIFICATION
Silicon Fine Bubble Tube Diffuser
SIZES

63 X 620, 63 X 1020, 90 X 1020 mm

SUPPORT PIPE OD

63, 90 mm

MEMBRANE ID

63, 90 mm

MOC OF MEMBRANE

EPDM/SILICONE

AIR FLOW RANGE

2-7.5, 2-10, 3-15 m³/hr

BUBBLE SIZE

0.8 - 1.9 mm

max pressure allowed

1.5 kg/cm³

Get Latest Quote
overview

Silicon Fine Bubble Tube Diffuser – The Smart Way to Treat Wastewater

Clean water is not just essential—it is life. Every day, industries and municipalities face the challenge of treating large volumes of wastewater. If not handled properly, this wastewater can damage the environment and public health. One of the most important processes in water treatment is aeration—adding oxygen to water so microorganisms can break down waste.

At Vasu Pharmatech, we provide a smart solution to this problem: the Silicon Fine Bubble Tube Diffuser. This modern technology is efficient, cost-effective, and environmentally friendly.

Fine Bubble Diffuser

Types Of Fine Bubble Diffusers

EPDM Fine Bubble Diffuser
silicon fine bubble diffuser

What is a Silicon Fine Bubble Tube Diffuser?

A Silicon Fine Bubble Tube Diffuser is a device that releases very small air bubbles—called fine bubbles—into wastewater. These fine bubbles help add oxygen to the water. The more oxygen you have, the better the bacteria can break down organic matter, making the water cleaner and safer.

This diffuser uses a tube-shaped silicon membrane that has many tiny holes. When air passes through these holes, it turns into microbubbles. These bubbles are smaller than 2mm in diameter and stay longer in water compared to larger bubbles. This gives more time for the oxygen to be absorbed.

So, what does that mean for you? Better treatment, lower energy bills, and less maintenance.

How Does It Work?

  • Air is pumped through a pipe connected to the diffuser.
  • The silicon membrane stretches and releases fine bubbles into the tank.
  • These fine bubbles rise slowly, spreading oxygen evenly across the tank.
  • Microorganisms in the water use this oxygen to break down waste like oil, grease, chemicals, and organic matter.

The result? Cleaner water, faster treatment, and less operational cost.

Key Features

Why Silicon? Why Not Other Materials?

There are other materials like EPDM and polyurethane used in diffusers. But silicon has clear advantages:

  • Chemical Resistance: Silicon resists harsh chemicals found in industrial wastewater.
  • Heat Resistance: It performs well in high-temperature environments.
  • Long Life: Silicon doesn’t crack or harden over time like other materials.
  • Elasticity: Its flexibility means better air distribution, even after years of use.
  • Non-Clogging: Silicon membranes are designed to prevent blockages.

Vasu Pharmatech uses premium-grade silicon for its Fine Bubble Tube Diffusers, ensuring long-lasting performance and minimal maintenance.

User Problems – And How We Solve Them

Every user faces different problems in wastewater management. Here’s how our Silicon Fine Bubble Tube Diffusers solve them:

✅ Problem: High Electricity Costs

Solution: Our diffusers require less pressure to produce fine bubbles. This means your blowers work less, saving energy—up to 30% less power use in some cases.

✅ Problem: Frequent System Clogging

Solution: The design of the silicon membrane prevents solid buildup and clogging. That means fewer breakdowns and less downtime.

✅ Problem: Inconsistent Aeration

Solution: Our diffusers provide uniform bubble distribution throughout the tank. This avoids dead spots and ensures full tank treatment.

✅ Problem: Short Product Life

Solution: Our silicon diffusers are built to last 5–7 years, even in tough conditions.

Where Can You Use Silicon Fine Bubble Tube Diffusers?

Silicon Fine Bubble Tube Diffusers are suitable for:

  • Municipal sewage treatment plants
  • Industrial wastewater facilities
  • Textile and dyeing units
  • Food and beverage industries
  • Dairy and meat processing plants
  • Pharmaceutical production
  • Aquaculture (fish farming)
  • Biological oxygen demand (BOD) reduction
  • Aerobic digestion and SBR (Sequential Batch Reactors)

    These diffusers perform well in both low-load and high-load treatment systems. They are used in aeration tanks, equalization basins, sludge tanks, and more.

Supporting Keywords – For Better Reach

Let’s break down how this article also aligns with user intent through the use of supporting keywords:

Fine Bubble Diffuser Suppliers

Looking for reliable fine bubble diffuser suppliers? At Vasu Pharmatech, we offer consistent stock, bulk pricing, and personalized service.

Silicon Fine Bubble Diffuser Price

We understand cost matters. Our Silicon Fine Bubble Diffuser price is competitive, and we offer the best value per unit of oxygen transferred. Contact us for custom quotes.

Fine Bubble Tube Diffuser Manufacturers

As top-rated fine bubble tube diffuser manufacturers, we control every stage of production. From raw material sourcing to quality testing, we ensure our products meet the highest standards.

Fine Bubble Tube Diffuser

This product is not just an accessory—it’s the heart of your aeration system. Our fine bubble tube diffuser offers unmatched efficiency and minimal maintenance.

How is the Installation Process?

One of the key advantages of our product is the easy and fast installation. Here’s a basic overview:

  1. Layout Planning – Decide the number of diffusers and their placement in the tank.

  2. Mounting – Fix the diffusers on mounting brackets or directly to the piping.

  3. Connection – Attach air supply pipes and test for leaks.

  4. System Testing – Run air through the system to check for uniform bubble output.

  5. Monitoring – After initial operation, monitor pressure and airflow.

The diffusers are also easy to replace, which makes them ideal for retrofitting older aeration systems.

Real Results – Real Impact

Some of our industrial clients reported the following improvements after switching to our Silicon Fine Bubble Tube Diffusers:

  • 30% drop in energy use due to lower blower pressure needs

  • 45% improvement in oxygen transfer rates compared to older coarse diffusers

  • 70% reduction in maintenance costs due to fewer clogs and membrane wear

  • Improved effluent quality, resulting in better compliance with pollution norms

This shows that investing in quality aeration not only improves performance but also saves money in the long term.

Why Vasu Pharmatech?

At Vasu Pharmatech, we are not just manufacturers—we are partners in progress. Here’s what you get when you work with us:

  • Custom-built solutions for your specific system design

  • Full support from selection to installation

  • Responsive customer service

  • Short lead times and timely delivery

  • Scalable production for small or large projects

We’ve worked with clients across various sectors, and we understand what real-world performance means.

Maintenance and Lifespan of Silicon Fine Bubble Tube Diffusers

One major reason users choose Vasu Pharmatech’s Silicon Fine Bubble Tube Diffusers is their long life and low maintenance.

✅ Low Maintenance

Thanks to the smooth, flexible silicon membrane:

  • Clogging is rare

  • Biofilm doesn’t stick easily

  • Airflow stays consistent

Cleaning is simple—just backflush with water or soak in a mild cleaning solution. You don’t need to dismantle the system.

⏳ Long Lifespan

Our silicon diffusers typically last 5 to 7 years, even in harsh industrial conditions. That’s twice as long as many rubber or EPDM alternatives, saving you on replacements and labor.

💡 Tip:

Check pressure drop occasionally and use clean, filtered air for best performance.

In short, you get a durable, reliable diffuser that works hard—with less work from you.

Conclusion

Choosing the right Silicon Fine Bubble Tube Diffuser can transform your entire wastewater treatment system. With high oxygen transfer efficiency and energy savings, fine bubble technology is the future of sustainable water management. At Vasu Pharmatech, we offer advanced silicon fine bubble diffusers that improve treatment performance while lowering operational costs.

As reliable fine bubble diffuser suppliers and trusted fine bubble tube diffuser manufacturers, we ensure every product meets high standards of durability, efficiency, and easy maintenance. Our diffusers are made from premium silicon, designed for long life, anti-clogging performance, and resistance to chemicals—making them ideal for municipal and industrial use.

If you’re looking for the best silicon fine bubble diffuser price with guaranteed quality and service, Vasu Pharmatech is your one-stop solution. Choose our fine bubble tube diffusers for clean water, consistent performance, and peace of mind.

FAQ

A Silicon Fine Bubble Tube Diffuser is an aeration device used in wastewater treatment. It releases tiny air bubbles into water, helping oxygen dissolve more efficiently. The silicon membrane creates fine bubbles, which stay longer in the water and improve oxygen transfer.

Silicon diffusers last longer and resist chemical damage better than EPDM or rubber. They don’t crack, harden, or clog easily, which means fewer replacements and less maintenance over time.

You can use it in sewage treatment plants, industrial effluent systems, aquaculture tanks, food processing units, and chemical plants—anywhere efficient aeration is needed.

A quality silicon fine bubble diffuser can last 5 to 7 years with proper care. It offers long-term performance, even in tough industrial conditions.

The silicon fine bubble diffuser price depends on size, design, and quantity. At Vasu Pharmatech, we offer affordable pricing and bulk order discounts. Contact us for a custom quote.
