Fine Bubble Diffuser

SPECIFICATION
Fine Bubble Diffuser
SIZES

63 X 620, 63 X 1020, 90 X 1020 mm

SUPPORT PIPE OD

63, 90 mm

MEMBRANE ID

63, 90 mm

MOC OF MEMBRANE

EPDM/SILICONE

AIR FLOW RANGE

2-7.5, 2-10, 3-15 m³/hr

BUBBLE SIZE

0.8 - 1.9 mm

max pressure allowed

1.5 kg/cm³

Get Latest Quote
overview

Fine Bubble Diffuser

A fine bubble diffuser is designed to introduce air into liquids in the form of very small bubbles. These bubbles increase the surface area for oxygen transfer, enhancing the efficiency of various processes, such as wastewater treatment and aquaculture. The fine bubble technology is popular for its ability to improve oxygenation and mixing in water bodies.

Fine bubble diffusers work by creating tiny bubbles that rise slowly through the liquid. This slow ascent allows for maximum oxygen transfer before the bubbles reach the surface. They are often used in aeration tanks and ponds to support the growth of aerobic microorganisms essential for breaking down organic matter.

Fine Bubble Diffuser

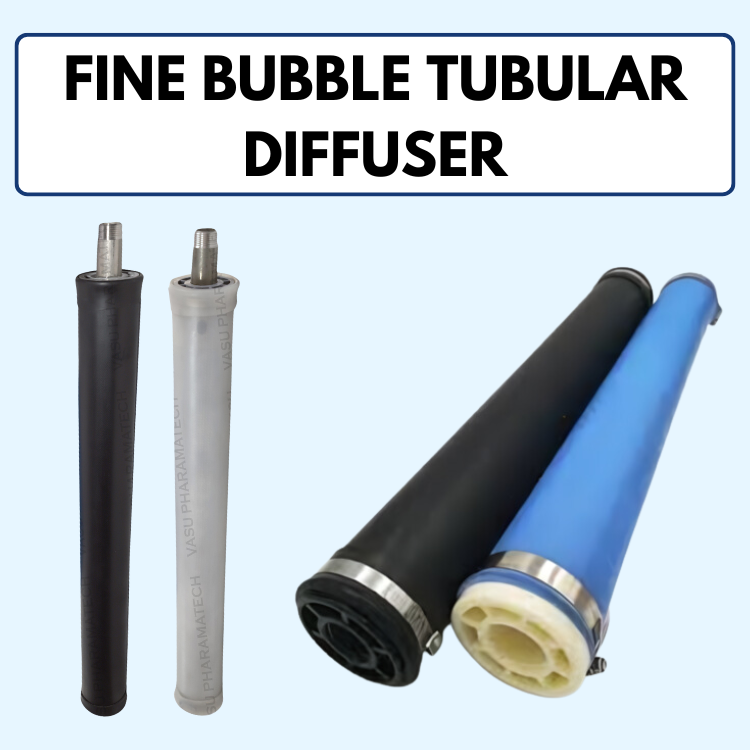

Our Range of Fine Bubble Tubular Diffusers

Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Tubular Diffuser by Vasu Pharmatech is an efficient aeration solution designed for wastewater treatment applications. Also known as Fine Bubble Tube Diffuser, and supplied by trusted Fine Bubble Tube Diffuser Manufacturers and Fine Bubble Diffuser Suppliers, this diffuser is engineered to deliver uniform fine bubbles with reliable oxygen transfer performance.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 2 – 7.5 m³/hr
  • Diffuser Type: Tube
  • Size: 63 mm & 90 mm
  • Membrane Material: EPDM & Silicone
  • Body Material: PP
  • Pipe Connection: 3/4 inch BSP
  • Application: STP, ETP, Aeration Tank
  • Brand: Vasu Pharmatech

Fine Bubble Tubular Diffusers are designed to handle high volumetric airflow while producing consistent fine bubbles for efficient oxygen transfer. The perforated membrane design improves aeration efficiency and helps prevent backflow, ensuring stable performance and long service life in continuous wastewater treatment operations.

80mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Tubular Diffusers by Vasu Pharmatech are high-performance aeration devices used in wastewater treatment systems. Also known as Fine Bubble Tube Diffuser, these diffusers are designed to deliver uniform fine bubbles for maximum oxygen transfer efficiency in STP, ETP, and aeration tanks.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr
  • Diffuser Type: Disc
  • Size: 80 mm
  • Membrane Material: EPDM
  • Pipe Connection: 3/4 inch BSP
  • Max Operating Temperature: 60°C
  • Brand: Vasu Pharmatech

Fine Bubble Tubular Diffusers are engineered to handle high-volume air discharge with excellent efficiency. Manufactured using high-quality EPDM or Silicone membranes with precision perforation, they produce fine bubbles that maximize oxygen transfer. The design also helps prevent backflow, ensuring reliable, long-term performance in wastewater treatment applications.

Specifications (Models Available):

  • VPFBD 600: 63 × 620 mm | Air Flow: 2 – 7.5 m³/hr
  • VPFBD 1000: 63 × 1020 mm | Air Flow: 2 – 10 m³/hr
  • VPFBD 1090: 90 × 1020 mm | Air Flow: 3 – 15 m³/hr

63 x 1000 mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

63 × 1000 mm EPDM Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment applications. This Fine Bubble Tubular Diffuser handles high volumetric air discharge while delivering uniform fine bubbles for improved oxygen transfer.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 2–10 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 63 × 1000 mm
  • Membrane Material: EPDM
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

The precision-perforated EPDM membrane ensures high oxygen transfer efficiency and uniform bubble distribution. The design also helps prevent backflow, ensuring stable and long-term performance in STP, ETP, and aeration tank systems.

90 x 1000 mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. The VPFBD 1090 Silicone Fine Bubble Tubular Diffuser handles high volumetric air discharge while delivering uniform fine bubbles for improved oxygen transfer efficiency.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 3–15 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 90 × 1000 mm
  • Membrane Material: EPDM / Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

These Fine Bubble Tubular Diffusers use precision-perforated membranes to ensure high oxygen transfer efficiency and uniform bubble distribution. The design also helps prevent backflow, ensuring stable, long-term performance in STP, ETP, and aeration tank applications.

63 x 1000mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Silicone Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient and consistent aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser handles high volumetric air discharge while producing uniform fine bubbles for improved oxygen transfer efficiency.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 2–10 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 63 × 1000 mm
  • Membrane Material: Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures high oxygen transfer efficiency and uniform bubble distribution. The diffuser design also helps prevent backflow, ensuring reliable and long-term performance in STP, ETP, and aeration tank applications.

63 x 1020mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Silicone Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser handles high volumetric air discharge while producing uniform fine bubbles for improved oxygen transfer efficiency.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 2–7.5 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 63 × 1020 mm
  • Membrane Material: Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures efficient oxygen transfer and uniform bubble distribution. The design also helps prevent backflow, ensuring reliable and long-term performance in STP, ETP, and aeration tank applications.

90 x1000mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Silicone Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser is suitable for applications where reliable oxygen transfer and uniform air distribution are required.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 2–7.5 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 90 × 1000 mm
  • Membrane Material: Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures efficient oxygen transfer and uniform fine bubble formation. The diffuser design helps prevent backflow during operation, ensuring stable and long-term performance in STP, ETP, and aeration tank applications.

90 x1020mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser can handle high volumetric air discharge while producing uniform fine bubbles for effective oxygen transfer. It is widely used in STP, ETP, and aeration tank applications for reliable and long-term performance.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 3–15 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 90 × 1020 mm
  • Membrane Material: Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

    The precision-perforated silicone membrane ensures high oxygen transfer efficiency with uniform bubble distribution. The diffuser design also helps prevent backflow, ensuring stable and long-term operation in wastewater treatment systems.

Fine Bubble Tube Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Diffuser by Vasu Pharmatech is designed for efficient aeration with uniform fine bubble distribution and high oxygen transfer. This Fine Bubble Tube Diffuser uses EPDM/Silicone perforated membranes to handle high airflow, reduce energy consumption, and prevent backflow.

As a trusted Fine Bubble Tube Diffuser Manufacturer, Vasu Pharmatech provides durable and reliable diffusers for STP, ETP, fish farming, and aeration tank applications. Customers seeking the best Fine Bubble Diffuser Price and dependable Fine Bubble Diffuser Suppliers can rely on Vasu Pharmatech for quality performance.

  • Length: 1000 mm
  • Membrane Material: EPDM & Silicone
  • Air Flow Rate: 2 – 10 m³/hr
  • Bubble Size: Fine bubble
  • Pipe Connection: 3/4 inch BSP
  • Body Material: PP
  • Shape: Tube
  • Application: STP, ETP, Fish Farming, Aeration Tank
  • Country of Origin: India
  • Brand: Vasu Pharmatech

    The precision-perforated membrane ensures high oxygen transfer efficiency with uniform bubble distribution. The diffuser design also helps prevent backflow, providing stable and long-term operation in wastewater treatment and aeration systems.

Vasu Pharmatech Membrane Diffuser

Get Latest Price

Product Brochure

Key Specifications

Membrane Diffuser by Vasu Pharmatech is a high-performance fine bubble aeration diffuser designed for efficient oxygen transfer in wastewater treatment systems. It produces uniform fine bubbles that increase dissolved oxygen levels, improve biological degradation, and reduce overall energy consumption.

This diffuser is ideal for use in STP, ETP, aeration tanks, and industrial biological reactors, ensuring reliable operation and long service life with stable performance.

  • Membrane Material: EPDM & Silicone
  • Diffuser Type: Disc
  • Bubble Size: Fine bubble
  • Air Flow Rate: 2 – 7.5 m³/hr
  • Size: 63 mm
  • Pipe Connection: 3/4 inch BSP
  • Body Material: PP
  • Application: ETP, Aeration Tank, STP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Brand: Vasu Pharmatech

    The precision-perforated membrane ensures uniform bubble distribution with high oxygen transfer efficiency, making it suitable for continuous and long-term aeration applications.

Air Diffuser for STP

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Diffuser by Vasu Pharmatech is a high-performance aeration solution designed for efficient oxygen transfer in wastewater treatment systems. This Fine Bubble Tube Diffuser produces uniform fine bubbles that increase dissolved oxygen levels, improve biological degradation, and reduce energy consumption.

As one of the trusted Fine Bubble Tube Diffuser Manufacturers, Vasu Pharmatech provides durable and reliable diffusers for STP, ETP, fish farming, and aeration tank applications. Customers looking for competitive Fine Bubble Diffuser Price and dependable Fine Bubble Diffuser Suppliers can rely on Vasu Pharmatech for consistent quality and long service life.

  • Length: 1020 mm
  • Membrane Material: EPDM & Silicone
  • Neck Size: 3/4 BSP
  • Air Flow Rate: 2 – 7.5 m³/hr
  • Bubble Size: Fine bubble
  • Size: 63 mm
  • Pipe Connection: 3/4 inch BSP
  • Diffuser Type: Tube
  • Body Material: PP
  • Application: Fish Farming, Aeration Tank, ETP, STP
  • Brand: Vasu Pharmatech

    The precision-perforated membrane ensures uniform bubble distribution with high oxygen transfer efficiency, making it suitable for continuous and long-term aeration in wastewater and biological treatment systems.

Types Of Fine Bubble Diffusers

EPDM Fine Bubble Diffuser
silicon fine bubble diffuser

Advantages of Fine Bubble Diffusers

Using a fine bubble diffuser comes with numerous advantages that make it a preferred choice in many applications:
  1. Efficient Oxygen Transfer: The small size of the bubbles provides a larger surface area for oxygen exchange, allowing for higher levels of dissolved oxygen in the water. This efficiency is crucial for processes like wastewater treatment, where oxygen is necessary for the breakdown of pollutants.
  2. Energy Savings: Fine bubble diffusers typically require less energy to operate compared to traditional aeration methods. This energy efficiency translates into lower operational costs, making them an economical choice for facilities aiming to reduce expenses.
  3. Improved Mixing: The introduction of fine bubbles helps achieve better mixing within the liquid. This improved mixing is vital in processes that require uniform distribution of oxygen and nutrients throughout the water.
  4. Reduced Sludge Production: The use of fine bubble diffusers can lead to a reduction in the amount of sludge produced during treatment processes. This reduction is beneficial as it lowers the costs and efforts associated with sludge handling and disposal.
  5. Versatility: Fine bubble diffusers are versatile and can be used in various applications, including municipal wastewater treatment, aquaculture, and industrial processes. This versatility makes them an attractive option for different industries.
  6. Durability: Many fine bubble diffusers are designed to withstand harsh conditions, including chemicals and varying temperatures. This durability ensures a longer lifespan and lower maintenance costs.

What is a Fine Bubble Diffuser?

A Fine Bubble Diffuser is a device used to introduce oxygen into water through the release of fine, small air bubbles. These diffusers are typically placed at the bottom of a wastewater treatment tank or aeration basin to improve the oxygen transfer rate in the water. The fine bubbles produced by the diffuser have a larger surface area, which allows more oxygen to be absorbed into the water, improving the efficiency of the treatment process.

Fine bubble diffusers are made of materials such as rubber, silicone, or ceramics, and they are designed to be durable, resistant to wear, and capable of handling varying air pressures. These diffusers are commonly used in wastewater treatment, aquaculture, and other industrial applications where oxygenation is essential.

Key Features

Fine Bubble Diffuser​

  • High Oxygen Transfer Efficiency: Maximizes oxygenation with smaller bubble size.
  • Energy Efficient: Reduces operational costs with lower energy consumption.
  • Durable Design: Built to withstand harsh conditions for long-lasting performance.
  • Easy Installation: Simple setup process for quick deployment in various applications.
  • Versatile Applications: Suitable for wastewater treatment, aquaculture, and more.

Fine Bubble Diffuser Price: What to Consider

When considering the purchase of a Fine Bubble Diffuser, it’s important to understand the factors that can influence the price. Some of the key factors that affect the price of fine bubble diffusers include:

  1. Material Quality: Diffusers made from high-quality materials, such as silicone, EPDM rubber, or ceramics, tend to be more expensive. However, these materials offer better durability and performance, which can justify the higher price.

  2. Size and Type: The size and type of diffuser also affect the price. For example, Fine Bubble Tube Diffusers are typically more expensive than Fine Bubble Disc Diffusers because they cover larger areas and are often used in larger systems or deeper tanks.

  3. Customization: If you need a custom-designed diffuser to fit specific requirements, this will generally increase the price. Customization can include adjustments to size, material, or performance specifications.

  4. Supplier and Manufacturer: The reputation and experience of the Fine Bubble Diffuser Suppliers can also influence the price. Established suppliers with a good reputation often offer high-quality products at a premium price. However, they may also offer better warranties, customer support, and after-sales services.

  5. Quantity: The more diffusers you purchase, the lower the price per unit may be. Bulk purchasing can help you save on costs in the long run.

How to Choose the Right Fine Bubble Diffuser Supplier

Choosing the right Fine Bubble Diffuser Supplier is crucial for ensuring the quality and performance of your water treatment system. Here are some key factors to consider when selecting a supplier:

Experience and Reputation: Look for a supplier with years of experience in the field. A trusted supplier with a strong reputation is more likely to provide high-quality diffusers and reliable customer service.

Product Range: Ensure that the supplier offers a wide range of diffusers, including Fine Bubble Disc Diffusers, Fine Bubble Tube Diffusers, and other types. This will give you more options to choose from and ensure that you find the best diffuser for your specific application.

Customization Options: Some suppliers, including Vasu Pharmatech, offer customized diffusers tailored to your specific needs. If your system has unique requirements, look for a supplier that can provide customized solutions.

Quality Assurance: Choose a supplier that offers high-quality products backed by warranties or guarantees. This ensures that you are getting durable and reliable diffusers that will perform well in your system.

Customer Support: A good supplier will provide excellent customer support, including technical assistance, installation guidance, and ongoing maintenance advice. Ensure that the supplier offers after-sales support to address any issues that may arise.

Vasu Pharmatech

Fine Bubble Diffuser Manufacturer

When it comes to finding reliable fine bubble diffuser suppliers, Vasu Pharmatech stands out as a reputable manufacturer. Vasu Pharmatech specializes in providing high-quality fine bubble diffusers that cater to various industry needs.

Key Features of Vasu Pharmatech Fine Bubble Diffusers
  • Quality Assurance: Vasu Pharmatech ensures that all their products, including fine bubble diffusers, undergo rigorous quality checks. This commitment to quality guarantees that customers receive durable and efficient products.
  • Customization Options: Understanding that different applications may require specific solutions, Vasu Pharmatech offers customization options for their fine bubble diffusers. This flexibility allows clients to get diffusers tailored to their unique requirements.
  • Technical Support: Vasu Pharmatech provides excellent customer support, including installation guidance and maintenance tips. This support helps customers optimize the performance of their fine bubble diffusers.
  • Competitive Pricing: When searching for fine bubble diffuser price information, Vasu Pharmatech offers competitive pricing without compromising on quality. This pricing strategy makes their products accessible to a wide range of customers.
  • Reputation: Vasu Pharmatech has built a strong reputation in the industry as a reliable supplier of fine bubble diffusers. Their commitment to customer satisfaction and high-quality products makes them a preferred choice for many businesses.

A fine bubble diffuser is a valuable tool for improving oxygen transfer and mixing in various applications. Its numerous advantages, including efficiency, energy savings, and reduced sludge production, make it essential in industries like wastewater treatment and aquaculture. Vasu Pharmatech stands out as a leading manufacturer of fine bubble diffusers, offering high-quality products and excellent support.

For those looking for reliable fine bubble tube diffuser manufacturers or fine bubble diffuser suppliers, Vasu Pharmatech is a trusted name in the market. With their focus on quality and customer satisfaction, you can be confident in choosing Vasu Pharmatech for your fine bubble diffuser needs.

Conclusion

A fine bubble diffuser is a valuable tool for improving oxygen transfer and mixing in various applications. Its numerous advantages, including efficiency, energy savings, and reduced sludge production, make it essential in industries like wastewater treatment and aquaculture. Vasu Pharmatech stands out as a leading manufacturer of fine bubble diffusers, offering high-quality products and excellent support.

For those looking for reliable fine bubble tube diffuser manufacturers or fine bubble diffuser suppliers, Vasu Pharmatech is a trusted name in the market. With their focus on quality and customer satisfaction, you can be confident in choosing Vasu Pharmatech for your fine bubble diffuser needs.

FAQ

A Fine Bubble Diffuser is a device used in water treatment systems to introduce oxygen into water by releasing small, fine bubbles. The fine bubbles have a larger surface area, allowing more oxygen to be absorbed into the water. This process helps improve water quality by supporting the growth of microorganisms that break down organic waste.

There are several types of Fine Bubble Diffusers, including:

  • Fine Bubble Disc Diffuser: A disc-shaped diffuser ideal for shallow tanks.
  • Fine Bubble Tube Diffuser: A longer diffuser suitable for deeper tanks or larger systems.
  • Ceramic Fine Bubble Diffuser: Made from ceramics for high durability and resistance to fouling.
  • Membrane Fine Bubble Diffuser: Uses flexible membranes to produce fine bubbles.

Fine Bubble Diffusers offer several benefits:

  • They provide higher oxygen transfer efficiency, improving the water treatment process.
  • Energy efficiency reduces operational costs.
  • They require less maintenance and have a longer lifespan.
  • They ensure better mixing and even oxygen distribution throughout the water.

When choosing a Fine Bubble Diffuser, consider factors such as the type of tank, the depth, and the specific needs of your water treatment system. You should also think about the material (e.g., silicone, EPDM rubber, ceramics) and the size of the diffuser. It’s best to consult a reliable Fine Bubble Diffuser Supplier like Vasu Pharmatech to get expert advice.

To maintain Fine Bubble Diffusers, clean them regularly to prevent clogging due to debris or biofilm buildup. Inspect the diffusers for wear and tear, and ensure the air supply remains consistent. Regular maintenance will ensure that the diffusers continue to work efficiently, helping maintain optimal oxygen transfer in your water treatment system.
