Tube Deck Media
SPECIFICATION
PLAN SETTLING AREA
60° Slope: 11 m²/m³
50° Slope: 13 m²/m³
CROSS SECTIONAL AREA
120 mm X 44 mm
MOC / COLOUR
Pvc / Black
HYDRAULIC RADIUS
15 mm
THICKNESSES
1 mm Approx.
FITTING ARRANGEMENT
Tongue & Groove
MAX. CONTINUOUS OPERATlNG TEMP.
55° C
overview

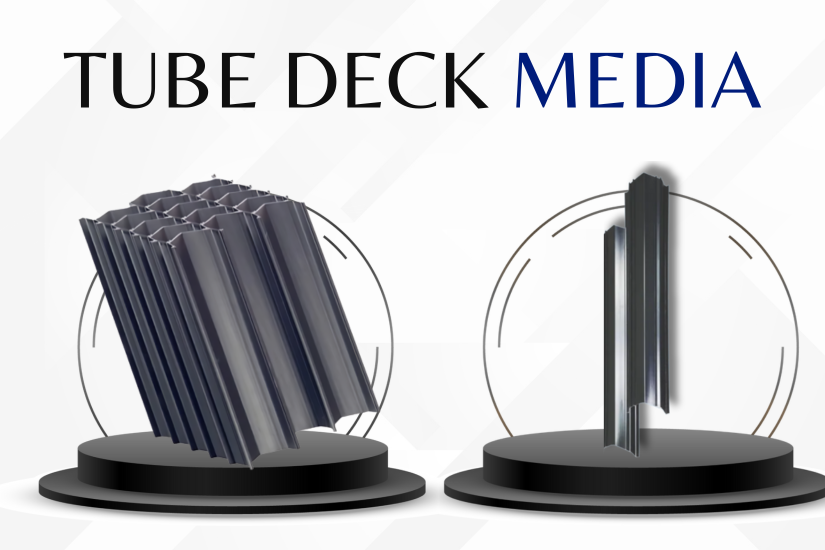

Tube Deck Media
In modern water and wastewater treatment plants, tube deck media has become one of the most reliable and cost-effective solutions for settling suspended particles. The design, efficiency, and technical specifications of tube deck media make it a preferred choice for engineers, contractors, and municipal projects across India and abroad. Among leading suppliers, Vasu Pharmatech has established itself as a trusted name for delivering durable and high-performance tube settler media in Delhi and beyond.
This guide provides an in-depth explanation of tube deck media, its types, applications, benefits, technical features, and why choosing the right supplier is crucial for long-term performance.

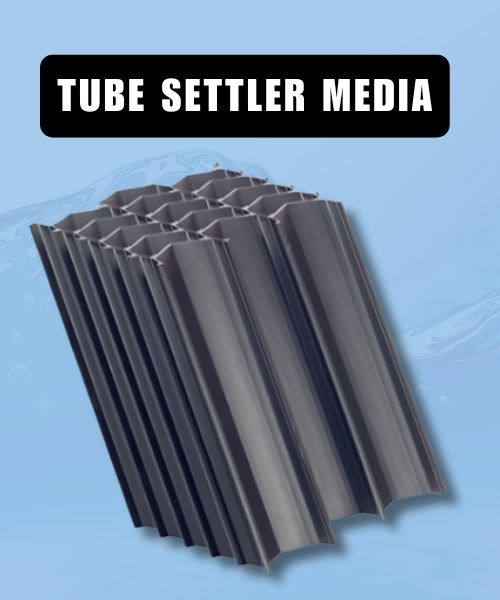

Our Range of PVC Tube Settler Media
1000mm PVC Tube Settler Media
Get Latest Price
Product BrochureKey Specifications
Tube Deck Media by Vasu Pharmatech is an efficient sedimentation solution used for solids removal in water, effluent, and sewage treatment plants. Also known as Tube Settler Media or Tube Deck Settler Media, it increases effective settling area, improves clarification efficiency, and reduces tank size and project cost.
Manufactured from high-quality PVC, this media is lightweight, durable, and easy to install in both rectangular and circular clarifiers. The inclined tube design (60°) ensures faster particle settling and consistent hydraulic performance.
- Material: PVC
- Tube Size: 1000 mm
- Media Thickness: 1 mm
- Inclination Angle: 60°
- Module Size: 0.5 m × 3 m
- Hydraulic Radius: 15 mm
- Operating Temperature: Up to 55°C
- Color: Black
As a trusted Tube Deck Media Supplier in Delhi, Vasu Pharmatech delivers reliable, cost-effective clarification solutions for industrial and pharmaceutical applications.
750mm PVC Tube Settler Media
Get Latest Price
Product BrochureKey Specifications
Tube Deck Media by Vasu Pharmatech is an efficient sedimentation solution used for solids removal in water, effluent, and sewage treatment plants. Also known as Tube Settler Media or Tube Deck Settler Media, it increases effective settling area, improves clarification efficiency, and reduces tank size and project cost.
Manufactured from high-quality PVC, this media is lightweight, durable, and easy to install in both rectangular and circular clarifiers. The inclined tube design (60°) ensures faster particle settling and consistent hydraulic performance.
- Material: PVC
- Tube Size: 750 mm
- Media Thickness: 1 mm
- Inclination Angle: 60°
- Module Size: 0.5 m × 3 m
- Hydraulic Radius: 15 mm
- Operating Temperature: Up to 55°C
- Color: Black
As a trusted Tube Deck Media Supplier in Delhi, Vasu Pharmatech delivers reliable, cost-effective clarification solutions for industrial and pharmaceutical applications.
866mm PVC Tube Settler Media
Get Latest Price
Product BrochureKey Specifications
Tube Deck Media by Vasu Pharmatech is an efficient sedimentation solution used for solids removal in water, effluent, and sewage treatment plants. Also known as Tube Settler Media or Tube Deck Settler Media, it increases effective settling area, improves clarification efficiency, and reduces tank size and project cost.
Manufactured from high-quality PVC, this media is lightweight, durable, and easy to install in both rectangular and circular clarifiers. The inclined tube design (60°) ensures faster particle settling and consistent hydraulic performance.
- Material: PVC
- Tube Size: 866 mm
- Media Thickness: 1 mm
- Inclination Angle: 60°
- Module Size: 0.5 m × 3 m
- Hydraulic Radius: 15 mm
- Operating Temperature: Up to 55°C
- Color: Black
As a trusted Tube Deck Media Supplier in Delhi, Vasu Pharmatech delivers reliable, cost-effective clarification solutions for industrial and pharmaceutical applications.
1155 mm PVC Tube Settler Media
Get Latest Price
Product BrochureKey Specifications
Tube Deck Media by Vasu Pharmatech is an efficient sedimentation solution used for solids removal in water, effluent, and sewage treatment plants. Also known as Tube Settler Media or Tube Deck Settler Media, it increases effective settling area, improves clarification efficiency, and reduces tank size and project cost.
Manufactured from high-quality PVC, this media is lightweight, durable, and easy to install in both rectangular and circular clarifiers. The inclined tube design (60°) ensures faster particle settling and consistent hydraulic performance.
- Material: PVC
- Tube Size: 1155 mm
- Media Thickness: 1 mm
- Inclination Angle: 60°
- Module Size: 0.5 m × 3 m
- Hydraulic Radius: 15 mm
- Operating Temperature: Up to 55°C
- Color: Black
As a trusted Tube Deck Media Supplier in Delhi, Vasu Pharmatech delivers reliable, cost-effective clarification solutions for industrial and pharmaceutical applications.
Calculator
Tube Settler Size Calculator
Please enter valid numbers.
Results
Required Plan Area:0 m²
Required Media Volume:0 m³
Need Expert Consultation?
Connect with Vasu Pharmatech experts for instant guidance and requirements.
What is Tube Deck Media?
Tube deck media, also referred to as tube settler media, is a modular arrangement of PVC tubes or channels placed at an inclined angle inside a sedimentation tank. Its purpose is to increase the settling surface area, allowing suspended solids to settle faster and more efficiently.
Instead of relying on large clarifiers or tanks, tube deck media increases the settling capacity within the same footprint. By introducing inclined channels, the travel distance of particles is reduced, and solids can settle at the bottom quickly.
This makes tube deck settler media an essential technology for:
- Drinking water treatment plants
- Wastewater treatment plants (STPs and ETPs)
- Industrial process water treatment
- Municipal projects
Applications
How Tube Deck Media Works
The functioning of tube deck media is based on simple yet effective hydraulic principles.
- Water enters the sedimentation tank where tube deck media is installed.
- The inclined tubes or channels provide a larger plan settling area compared to plain basins.
- Suspended particles settle on the surfaces of the media.
- As the solids accumulate, they slide down the inclined channels to the bottom.
- Clear water rises upward and exits the tank.
The result is efficient clarification in a smaller tank, saving space, cost, and maintenance.
Benefits
Types of Tube Deck Media
Tube deck media is available in different shapes, configurations, and materials depending on the application. Below are the main types:
1. PVC Tube Deck Media
- Made from strong and lightweight PVC material.
- Resistant to corrosion and chemicals.
- Commonly used in both municipal and industrial applications.
2. Polypropylene Tube Settler Media
- Higher chemical resistance compared to PVC.
- Ideal for industrial effluents with aggressive chemicals.
- Long life span and stable at higher operating temperatures.
3. Hexagonal Tube Deck Media
- Honeycomb structure improves settling efficiency.
- Provides uniform distribution of water flow.
- Compact design suitable for space-constrained projects.
4. Inclined Plate or Lamella Media
- Plates placed at a fixed angle (50°–60°).
- Offers the highest settling efficiency in smaller tank volumes.
- Widely used in modern treatment plants.
Technical Specifications of Vasu Pharmatech Tube Deck Media
Applications of Tube Deck Media
Tube Deck Media vs Alternatives
Factors Affecting Tube Deck Media Price
Why Choose Vasu Pharmatech as Your Tube Deck Media Supplier?
Practical Example of Tube Deck Media in Action
Maintenance & Durability
Conclusion
About The Author
Lalit Nankani
Managing Partner, Vasu Pharmatech
Lalit Nankani has over 23 years of experience in the filtration and water treatment industry. He leads Vasu Pharmatech, a trusted name in making PP Filter Press Systems, MBBR Filter Media, and other filtration products.
Under his leadership, the company has delivered high-quality solutions to many industries like pharmaceuticals, chemicals, food and beverage, textiles, and wastewater treatment. Lalit believes in providing strong, easy-to-use, and cost-effective systems that help businesses clean and reuse water.

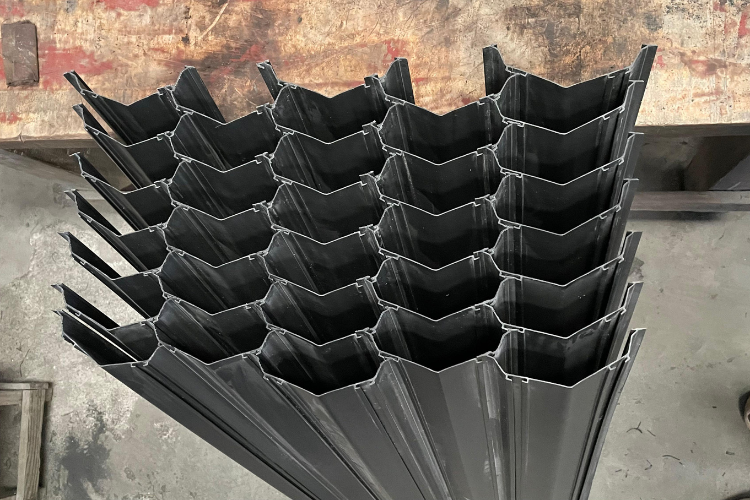

In-House Manufacturing Images
Q1. What is tube deck media?
Tube deck media is a modular PVC or PP structure used in water treatment plants to increase settling efficiency of suspended particles.
Q2. What is the difference between tube deck media and tube settler media?
Both terms are often used interchangeably, but tube deck media generally refers to the modular inclined structure, while tube settler media highlights its settling application.
Q3. Where is tube deck media used?
It is used in water treatment plants, sewage treatment plants, effluent treatment plants, and industrial process water systems.
Q4. What is the slope angle of tube deck media?
Tube deck media is commonly designed at a 50° or 60° slope, which improves settling performance.
Q5. What material is tube deck media made of?
Most commonly, it is made from PVC (black) or Polypropylene (PP) depending on chemical and temperature resistance needs.
Q6. What is the hydraulic radius of tube deck media supplied by Vasu Pharmatech?
The hydraulic radius is 15 mm, ensuring efficient sedimentation.
Q7. What is the thickness of standard tube deck media?
The thickness is typically 1 mm ± 0.01 mm, which provides strength and durability.
Q8. What is the maximum operating temperature for PVC tube deck media?
The maximum continuous operating temperature is 55°C.
Q9. How is tube deck media installed?
It uses a tongue & groove fitting arrangement, making installation quick and secure.
Q10. What are the benefits of using tube deck media?
Benefits include higher settling efficiency, reduced tank size, lower costs, better water quality, and minimal maintenance.
Q11. How does tube deck media improve water treatment?
It increases the effective settling area, allowing suspended solids to settle faster, which improves clarity and reduces treatment load.
Q12. How long does tube deck media last?
With proper maintenance, tube deck media can last 10–15 years.
Q13. Is tube deck media suitable for industrial wastewater?
Yes, especially when made with PP material, which resists harsh chemicals found in industrial effluents.
Q14. What is the plan settling area of tube deck media?
60° slope: 11 m²/m³
50° slope: 13 m²/m³
Q15. How does tube deck media save space?
It increases settling capacity within the same tank, reducing the need for large clarifiers.
Q16. How much does tube deck media cost?
The tube deck media price depends on thickness, material, slope angle, and order quantity. Contact suppliers like Vasu Pharmatech for the best rates.
Q17. What industries commonly use tube settler media?
Industries include textiles, pharmaceuticals, food processing, chemicals, and municipal corporations.
Q18. Can tube deck media be retrofitted into existing plants?
Yes, it can be easily added to existing tanks to improve performance without large civil modifications.
Q19. Why choose Vasu Pharmatech as a supplier?
Because they provide durable products, competitive pricing, strong technical specifications, and excellent customer support.
Q20. How often should tube deck media be cleaned?
Regular inspection and periodic flushing are recommended to prevent clogging and ensure long-term efficiency.
