Fine Bubble Tube Diffuser Exporter in India

SPECIFICATION
Fine Bubble Diffuser
SIZES

63 X 620, 63 X 1020, 90 X 1020 mm

SUPPORT PIPE OD

63, 90 mm

MEMBRANE ID

63, 90 mm

MOC OF MEMBRANE

EPDM/SILICONE

AIR FLOW RANGE

2-7.5, 2-10, 3-15 m³/hr

BUBBLE SIZE

0.8 - 1.9 mm

max pressure allowed

1.5 kg/cm³

Get Latest Quote
overview

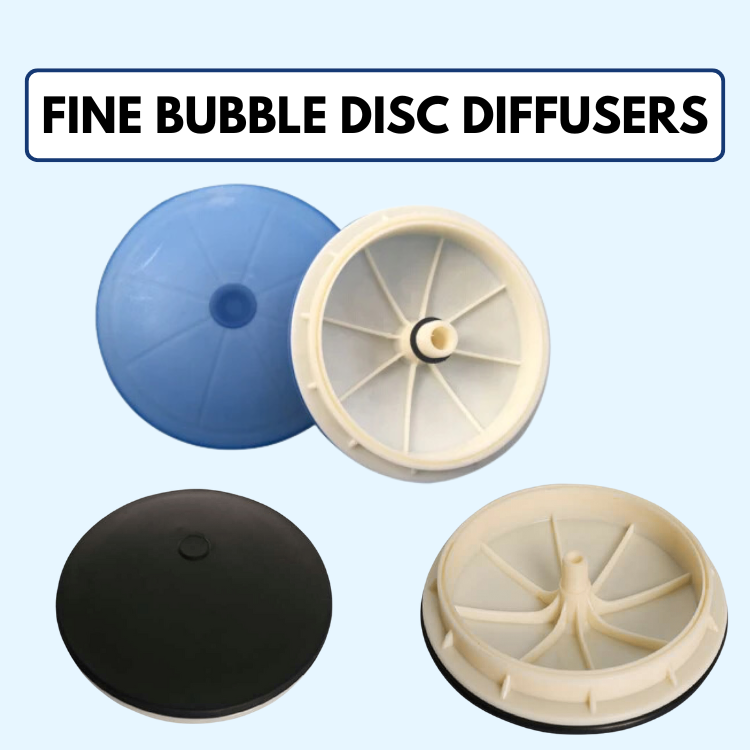

Fine Bubble Disc Diffuser Exporter in India – Vasu Pharmatech

In the world of wastewater treatment, the demand for energy-efficient and reliable aeration systems is growing fast. As a trusted Fine Bubble Disc Diffuser Exporter in India, Vasu Pharmatech offers advanced diffuser systems that help industries and municipalities solve tough water treatment problems. With our focus on quality, innovation, and customer satisfaction, we serve not just the Indian market but also international clients who need dependable solutions.

Being a leading fine bubble diffuser exporter, we provide high-performance systems that save energy and improve water treatment efficiency. Our diffusers are widely used in sewage treatment plants (STPs), effluent treatment plants (ETPs), and various industrial units.

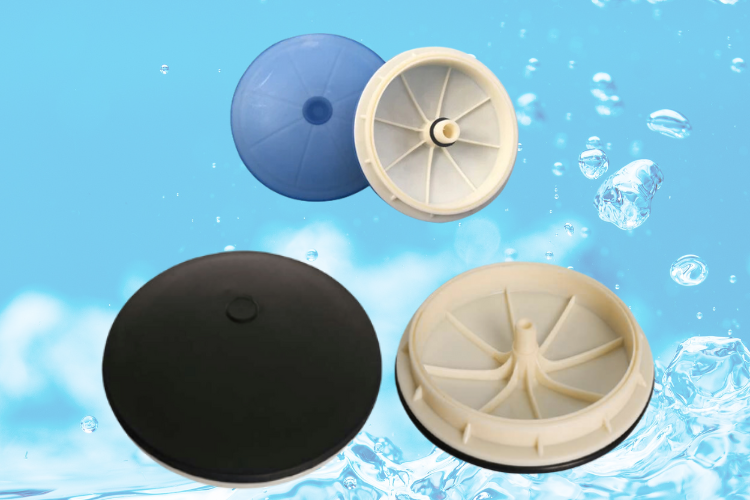

Fine Bubble Diffuser

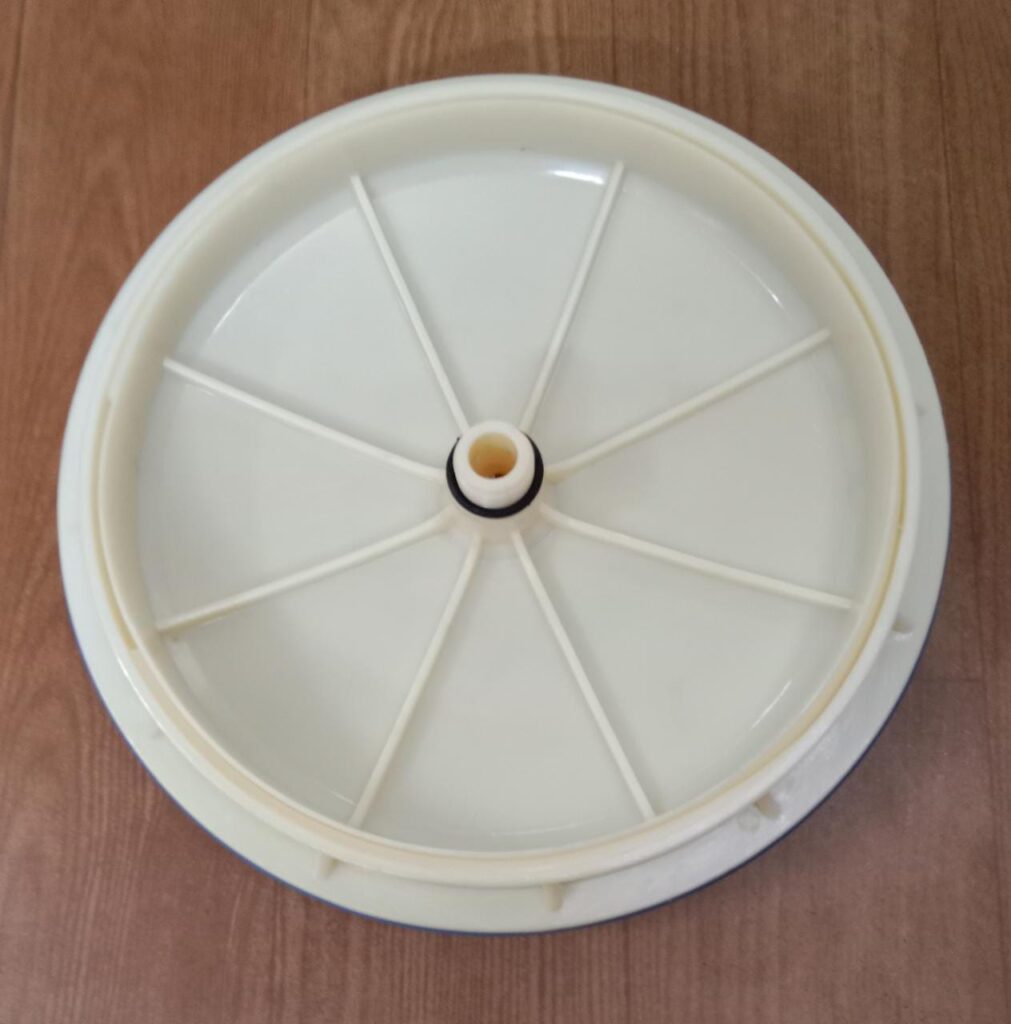

silicon fine bubble diffuser
EPDM Fine Bubble Diffuser

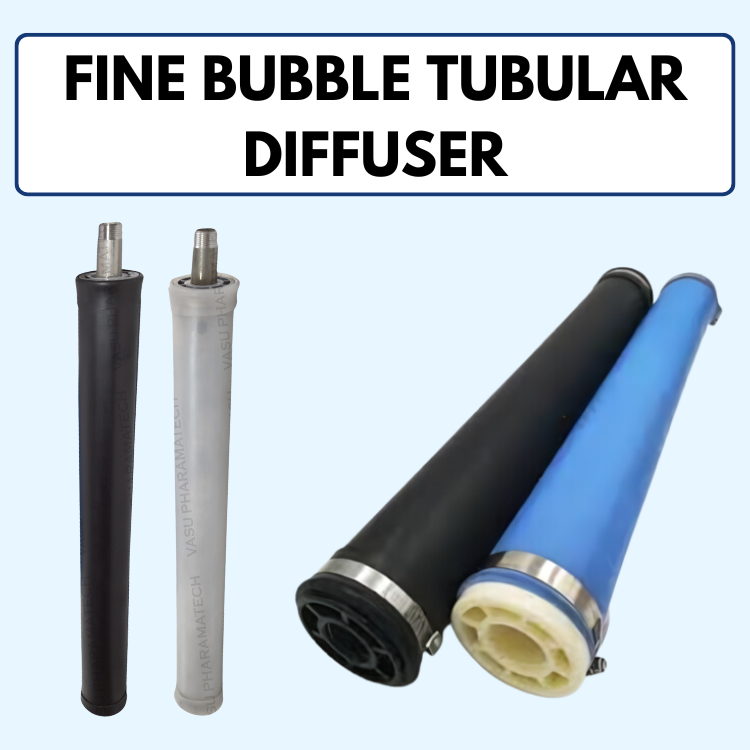

Our Range of Fine Bubble Tubular Diffusers

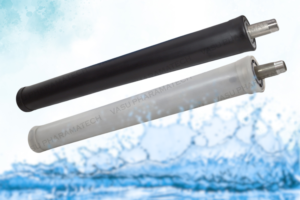

Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Tubular Diffuser by Vasu Pharmatech is an efficient aeration solution designed for wastewater treatment applications. Also known as Fine Bubble Tube Diffuser, and supplied by trusted Fine Bubble Tube Diffuser Manufacturers and Fine Bubble Diffuser Suppliers, this diffuser is engineered to deliver uniform fine bubbles with reliable oxygen transfer performance.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 2 – 7.5 m³/hr
  • Diffuser Type: Tube
  • Size: 63 mm & 90 mm
  • Membrane Material: EPDM & Silicone
  • Body Material: PP
  • Pipe Connection: 3/4 inch BSP
  • Application: STP, ETP, Aeration Tank
  • Brand: Vasu Pharmatech

Fine Bubble Tubular Diffusers are designed to handle high volumetric airflow while producing consistent fine bubbles for efficient oxygen transfer. The perforated membrane design improves aeration efficiency and helps prevent backflow, ensuring stable performance and long service life in continuous wastewater treatment operations.

80mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Tubular Diffusers by Vasu Pharmatech are high-performance aeration devices used in wastewater treatment systems. Also known as Fine Bubble Tube Diffuser, these diffusers are designed to deliver uniform fine bubbles for maximum oxygen transfer efficiency in STP, ETP, and aeration tanks.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr
  • Diffuser Type: Disc
  • Size: 80 mm
  • Membrane Material: EPDM
  • Pipe Connection: 3/4 inch BSP
  • Max Operating Temperature: 60°C
  • Brand: Vasu Pharmatech

Fine Bubble Tubular Diffusers are engineered to handle high-volume air discharge with excellent efficiency. Manufactured using high-quality EPDM or Silicone membranes with precision perforation, they produce fine bubbles that maximize oxygen transfer. The design also helps prevent backflow, ensuring reliable, long-term performance in wastewater treatment applications.

Specifications (Models Available):

  • VPFBD 600: 63 × 620 mm | Air Flow: 2 – 7.5 m³/hr
  • VPFBD 1000: 63 × 1020 mm | Air Flow: 2 – 10 m³/hr
  • VPFBD 1090: 90 × 1020 mm | Air Flow: 3 – 15 m³/hr

63 x 1000 mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

63 × 1000 mm EPDM Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment applications. This Fine Bubble Tubular Diffuser handles high volumetric air discharge while delivering uniform fine bubbles for improved oxygen transfer.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 2–10 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 63 × 1000 mm
  • Membrane Material: EPDM
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

The precision-perforated EPDM membrane ensures high oxygen transfer efficiency and uniform bubble distribution. The design also helps prevent backflow, ensuring stable and long-term performance in STP, ETP, and aeration tank systems.

90 x 1000 mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. The VPFBD 1090 Silicone Fine Bubble Tubular Diffuser handles high volumetric air discharge while delivering uniform fine bubbles for improved oxygen transfer efficiency.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 3–15 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 90 × 1000 mm
  • Membrane Material: EPDM / Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

These Fine Bubble Tubular Diffusers use precision-perforated membranes to ensure high oxygen transfer efficiency and uniform bubble distribution. The design also helps prevent backflow, ensuring stable, long-term performance in STP, ETP, and aeration tank applications.

63 x 1000mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Silicone Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient and consistent aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser handles high volumetric air discharge while producing uniform fine bubbles for improved oxygen transfer efficiency.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 2–10 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 63 × 1000 mm
  • Membrane Material: Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures high oxygen transfer efficiency and uniform bubble distribution. The diffuser design also helps prevent backflow, ensuring reliable and long-term performance in STP, ETP, and aeration tank applications.

63 x 1020mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Silicone Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser handles high volumetric air discharge while producing uniform fine bubbles for improved oxygen transfer efficiency.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 2–7.5 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 63 × 1020 mm
  • Membrane Material: Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures efficient oxygen transfer and uniform bubble distribution. The design also helps prevent backflow, ensuring reliable and long-term performance in STP, ETP, and aeration tank applications.

90 x1000mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Silicone Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser is suitable for applications where reliable oxygen transfer and uniform air distribution are required.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 2–7.5 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 90 × 1000 mm
  • Membrane Material: Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures efficient oxygen transfer and uniform fine bubble formation. The diffuser design helps prevent backflow during operation, ensuring stable and long-term performance in STP, ETP, and aeration tank applications.

90 x1020mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser can handle high volumetric air discharge while producing uniform fine bubbles for effective oxygen transfer. It is widely used in STP, ETP, and aeration tank applications for reliable and long-term performance.

  • Bubble Size: Fine bubble
  • Air Flow Rate: 3 m³/hr (Air Flow Range: 3–15 m³/hr)
  • Diffuser Type: Tube
  • Size: 63 mm
  • Overall Dimensions: 90 × 1020 mm
  • Membrane Material: Silicone
  • Pipe Connection: 3/4 inch BSP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Model Number: VFPBD 1000
  • Brand: Vasu Pharmatech

    The precision-perforated silicone membrane ensures high oxygen transfer efficiency with uniform bubble distribution. The diffuser design also helps prevent backflow, ensuring stable and long-term operation in wastewater treatment systems.

Fine Bubble Tube Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Diffuser by Vasu Pharmatech is designed for efficient aeration with uniform fine bubble distribution and high oxygen transfer. This Fine Bubble Tube Diffuser uses EPDM/Silicone perforated membranes to handle high airflow, reduce energy consumption, and prevent backflow.

As a trusted Fine Bubble Tube Diffuser Manufacturer, Vasu Pharmatech provides durable and reliable diffusers for STP, ETP, fish farming, and aeration tank applications. Customers seeking the best Fine Bubble Diffuser Price and dependable Fine Bubble Diffuser Suppliers can rely on Vasu Pharmatech for quality performance.

  • Length: 1000 mm
  • Membrane Material: EPDM & Silicone
  • Air Flow Rate: 2 – 10 m³/hr
  • Bubble Size: Fine bubble
  • Pipe Connection: 3/4 inch BSP
  • Body Material: PP
  • Shape: Tube
  • Application: STP, ETP, Fish Farming, Aeration Tank
  • Country of Origin: India
  • Brand: Vasu Pharmatech

    The precision-perforated membrane ensures high oxygen transfer efficiency with uniform bubble distribution. The diffuser design also helps prevent backflow, providing stable and long-term operation in wastewater treatment and aeration systems.

Vasu Pharmatech Membrane Diffuser

Get Latest Price

Product Brochure

Key Specifications

Membrane Diffuser by Vasu Pharmatech is a high-performance fine bubble aeration diffuser designed for efficient oxygen transfer in wastewater treatment systems. It produces uniform fine bubbles that increase dissolved oxygen levels, improve biological degradation, and reduce overall energy consumption.

This diffuser is ideal for use in STP, ETP, aeration tanks, and industrial biological reactors, ensuring reliable operation and long service life with stable performance.

  • Membrane Material: EPDM & Silicone
  • Diffuser Type: Disc
  • Bubble Size: Fine bubble
  • Air Flow Rate: 2 – 7.5 m³/hr
  • Size: 63 mm
  • Pipe Connection: 3/4 inch BSP
  • Body Material: PP
  • Application: ETP, Aeration Tank, STP
  • Max Pressure Allowed: 1.5 kg/cm²
  • Brand: Vasu Pharmatech

    The precision-perforated membrane ensures uniform bubble distribution with high oxygen transfer efficiency, making it suitable for continuous and long-term aeration applications.

Air Diffuser for STP

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Diffuser by Vasu Pharmatech is a high-performance aeration solution designed for efficient oxygen transfer in wastewater treatment systems. This Fine Bubble Tube Diffuser produces uniform fine bubbles that increase dissolved oxygen levels, improve biological degradation, and reduce energy consumption.

As one of the trusted Fine Bubble Tube Diffuser Manufacturers, Vasu Pharmatech provides durable and reliable diffusers for STP, ETP, fish farming, and aeration tank applications. Customers looking for competitive Fine Bubble Diffuser Price and dependable Fine Bubble Diffuser Suppliers can rely on Vasu Pharmatech for consistent quality and long service life.

  • Length: 1020 mm
  • Membrane Material: EPDM & Silicone
  • Neck Size: 3/4 BSP
  • Air Flow Rate: 2 – 7.5 m³/hr
  • Bubble Size: Fine bubble
  • Size: 63 mm
  • Pipe Connection: 3/4 inch BSP
  • Diffuser Type: Tube
  • Body Material: PP
  • Application: Fish Farming, Aeration Tank, ETP, STP
  • Brand: Vasu Pharmatech

    The precision-perforated membrane ensures uniform bubble distribution with high oxygen transfer efficiency, making it suitable for continuous and long-term aeration in wastewater and biological treatment systems.

Why Aeration Is Important in Water Treatment

Aeration is a key part of biological wastewater treatment. It helps increase oxygen in water, which is necessary for bacteria to break down waste. Without proper aeration, treatment processes become slow and less effective.

This is where the fine bubble disc diffuser plays a big role. It releases small bubbles that stay longer in water, allowing more oxygen to mix in. As a leading disc type fine bubble diffuser exporter, we make sure our products are designed to do this job well.

Common Problems Faced by Users

Many wastewater treatment plant operators and engineers face problems like:

  • Poor oxygen transfer efficiency
  • High electricity bills
  • Frequent diffuser clogging
  • Uneven air distribution
  • Short product life



All of these issues are costly and reduce the efficiency of the treatment plant. This is why choosing the right fine bubble disc diffuser suppliers is so important.

Key Features

Our Solution: High-Quality Fine Bubble Disc Diffusers

As one of the trusted fine bubble disc diffuser manufacturers in India and exporters abroad, Vasu Pharmatech focuses on solving these problems with our specially designed diffusers. Our products are made from top-grade materials like EPDM or silicone membranes and durable ABS or polypropylene bodies. These diffusers are built to handle different flow rates, temperatures, and chemical exposures—making them ideal for harsh Indian and overseas conditions.

We engineer each fine bubble disc diffuser to offer:

  • High oxygen transfer rate (OTR)
  • Uniform air distribution
  • Energy savings up to 30%
  • Long service life
  • Easy cleaning and maintenance



Our diffusers are ideal for both new installations and retrofitting old systems.

testimonials

What Our Clients Say About Us

5/5
PP Filter Press

Vasu’s PP Filter Press gave us consistent output with zero downtime. Quality is better than other vendors.

Sanjay Patel
Ahmedabad
5/5
MBBR Media

We switched to Vasu’s MBBR Media in our ETP plant. Biofilm grew faster and media remained stable under load.

Neeraj Saini
Bhopal
5/5
Tube Deck Media

Tube Deck Media from Vasu reduced our settling time and sludge issues. Good performance in compact STPs.

Pooja Trivedi
Jaipur
5/5
Coarse Bubble Diffuser

Coarse Bubble Diffuser gave even air distribution. Setup was quick and it’s been running well for over a year.

Manish Goyal
Nashik
5/5
Fine Bubble Diffusers

We installed Fine Disc Diffusers in our plant. Noticed better oxygen levels and lower energy use immediately.

Anisha Roy
Kolkata
5/5
Tube Settler Media

We trust Vasu for Tube Settler Media. The material quality is great and works efficiently even in high TSS.

Nisha Bhandari
Udaipur
5/5
PP Filter Press

We’ve been using PP Filter Press from Vasu for 2+ years. Strong build, smooth performance, and zero leakage issues.

Ramesh Verma
Vadodara
5/5
MBBR Media

Vasu’s MBBR Media helped improve our STP output quickly. No clogging, fast biofilm growth, and great durability.

Ankit Sharma
Pune
5/5
Tube Deck Media

After installing their Tube Deck Media, settling improved instantly. Easy to handle and works well in clarifiers.

Meena Desai
Indore

How Vasu Pharmatech Helps – Problem and Solution Table

User ProblemVasu Pharmatech’s Solution
Low oxygen levels in tanksFine bubble design for better oxygen transfer
High blower loadLow-pressure loss membrane saves energy
Blocked diffusersAnti-clogging design with quality materials
Short diffuser lifeDurable, tested EPDM/silicone membrane
Poor water treatment outputConsistent, uniform bubble distribution

Our engineering team ensures that each unit is tested before shipping, giving our clients confidence in both product and performance.

What Makes Us a Trusted Fine Bubble Diffuser Exporter

As a fine bubble diffuser exporter, we understand that overseas customers need not just products—but trust, service, and timely delivery. That’s why we follow strict quality control and export packaging standards. We supply to countries across the Middle East, Southeast Asia, and Africa, offering technical support and custom solutions.

Exporters are expected to deliver value, and that’s exactly what we do. Unlike ordinary suppliers, we don’t just ship parts—we ship ready-to-install, easy-to-maintain, performance-driven systems.

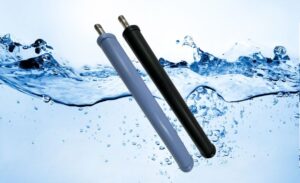

Fine Bubble Diffuser

Our Focus on Keyword Relevance

We are a recognized fine bubble disc diffuser exporter in India because we focus on user needs, not just keyword rankings. When engineers and plant heads search for:

  • “fine bubble diffuser exporter”
  • “disc type fine bubble diffuser exporter”
  • “fine bubble disc diffuser manufacturers in India”



—they are looking for quality, service, and product longevity. We ensure that our brand shows up not just in search results but in real-world installations that last for years.

Why Disc Type Fine Bubble Diffuser Is the Best Choice

The disc type fine bubble diffuser is more efficient than coarse bubble diffusers or older aeration methods. It:

  • Produces smaller bubbles that rise slowly
  • Transfers more oxygen to the water
  • Uses less air, saving blower energy
  • Requires less maintenance
  • Provides uniform bubble spread across the tank



These advantages make it a favorite among engineers and consultants, and our version is trusted by many across India and other countries.

Who Can Benefit from Our Diffusers

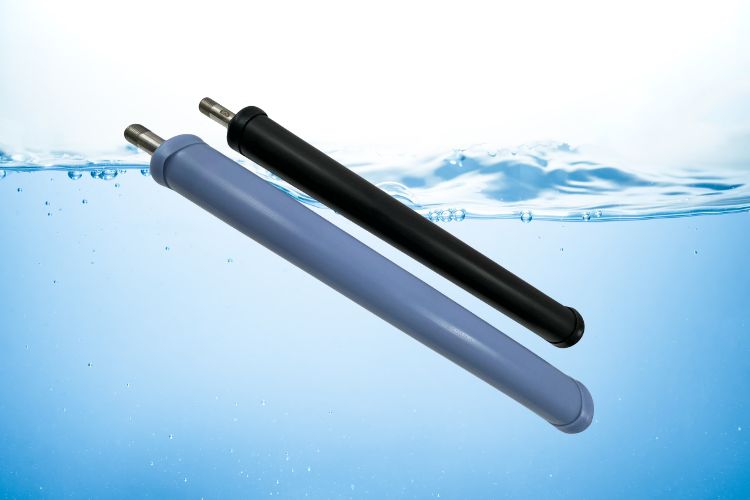

Fine Bubble DiffuserOur diffusers are used in:

  • Municipal STPs and ETPs
  • Food and dairy industry plants
  • Pharmaceutical and chemical industries
  • Textile and paper mills
  • Large-scale housing societies and commercial complexes

For all these industries, reliable aeration means better water quality, fewer problems, and lower costs. As reliable fine bubble disc diffuser suppliers, we help customers across different sectors solve real aeration problems.

Manufacturing with Indian Excellence, Exported Worldwide

Being among the top fine bubble disc diffuser manufacturers in India, our products are made in our high-tech facility using advanced molding and assembly techniques. Every unit undergoes multiple quality checks—both for leak testing and air flow performance.

We don’t just meet Indian standards—we exceed them so that we can serve global clients too. From raw materials to final inspection, we follow best practices that align with international expectations.

How Our Export Process Works

Exporting is not just about sending a product—it’s about providing a complete experience. Here’s what we do as a trusted fine bubble diffuser exporter:

  • Custom packaging for international shipments
  • Export-compliant documentation and certifications
  • Timely dispatch and shipping coordination
  • Support during and after installation



Because of our smooth process, many overseas customers continue to reorder and recommend Vasu Pharmatech for consistent quality.

Simple Installation and Low Maintenance

One of the biggest advantages of our fine bubble disc diffusers is their easy installation. You don’t need special tools or welding. They are made to fit common pipeline sizes and are easy to clean during scheduled maintenance. This means your aeration system runs with fewer stoppages, saving time and money.

Our design ensures a secure fit that prevents leakage and air loss. The membrane can be easily replaced without removing the entire diffuser unit. This helps reduce downtime and labor costs during maintenance. Operators find the system intuitive, which lowers the training time needed for staff. The structure resists chemical and biological buildup, which helps maintain long-term performance. Whether you are upgrading an old plant or building a new one, our diffusers adapt easily. Their lightweight body also reduces installation strain and handling effort. All these features make them a hassle-free and efficient choice for any aeration system.

Why Vasu Pharmatech Stands Out

While many suppliers sell disc diffusers, not all focus on real-world problems. That’s where Vasu Pharmatech stands apart. As a seasoned fine bubble disc diffuser exporter in India, we don’t just sell—we solve.

We offer:

  • Better product life
  • Better air distribution
  • Better support, even after shipping



And most importantly, better results for your water treatment system.

Conclusion

If you’re searching for a fine bubble disc diffuser exporter in India who delivers on quality, service, and performance—Vasu Pharmatech is your trusted partner. We understand the exact problems faced by treatment plant operators and solve them with advanced, tested, and reliable disc type fine bubble diffusers.

Whether you are in India or overseas, whether you are running a small treatment facility or a large-scale municipal plant, you can rely on us as your fine bubble diffuser exporter. We bring you top-grade technology, strong export systems, and a focus on what matters—clean, efficient water treatment that works.

FAQ

A fine bubble disc diffuser is a device used in wastewater treatment to inject small air bubbles into water. These fine bubbles help mix oxygen efficiently, which supports the growth of bacteria that break down organic waste. It improves the aeration process, saves energy, and leads to better treatment results.

As a leading fine bubble disc diffuser exporter in India, we follow strict quality checks at every stage—right from raw material selection to final testing. Each diffuser is tested for air distribution, leakage, and durability before dispatch, ensuring reliable and long-term performance.

Yes, our disc type fine bubble diffusers are designed for both new setups and retrofit installations. They fit common pipeline sizes and do not require major changes to your current system, making them ideal for upgrades.

We focus on solving real user problems with high-quality products, consistent support, and reliable exports. Unlike general suppliers, we specialize in disc type diffusers and customize our systems based on client needs, ensuring maximum efficiency and satisfaction.

Our diffusers are designed for low maintenance. Regular cleaning during scheduled plant servicing is usually enough. The membranes are easy to replace if needed, and the anti-clogging design reduces frequent issues faced with other types of diffusers.

Untitled design (2)

About The Author

Lalit Nankani
Managing Partner, Vasu Pharmatech

Lalit Nankani has over 12 years of experience in the filtration and water treatment industry. He leads Vasu Pharmatech, a trusted name in making PP Filter Press Systems, MBBR Filter Media, and other filtration products.

Under his leadership, the company has delivered high-quality solutions to many industries like pharmaceuticals, chemicals, food and beverage, textiles, and wastewater treatment. Lalit believes in providing strong, easy-to-use, and cost-effective systems that help businesses clean and reuse water.

Contact Us

In-house Manufacturing Images
★★★★★ 5/5
Reviews and Ratings

We certify that M/s. Vasu Pharmatech, located at 66B, Pocket AD Shalimar Bagh, Delhi-110088, supplied us with a Pharmatech filter press for our 275 KLD ETP plant at M/s. Asian Colour Coated Ispat Ltd. in Bawal, Dist: Rewari (Hr.). The plant was started in January 2018 and is still working well. The product and its performance have been satisfactory up to now.

ASIAN COLOUR COATED ISPAT LIMITED
Rewari, Haryana

Request A Quote

9 + 2 = ?
Reload

This CAPTCHA helps ensure that you are human. Please enter the requested characters.
