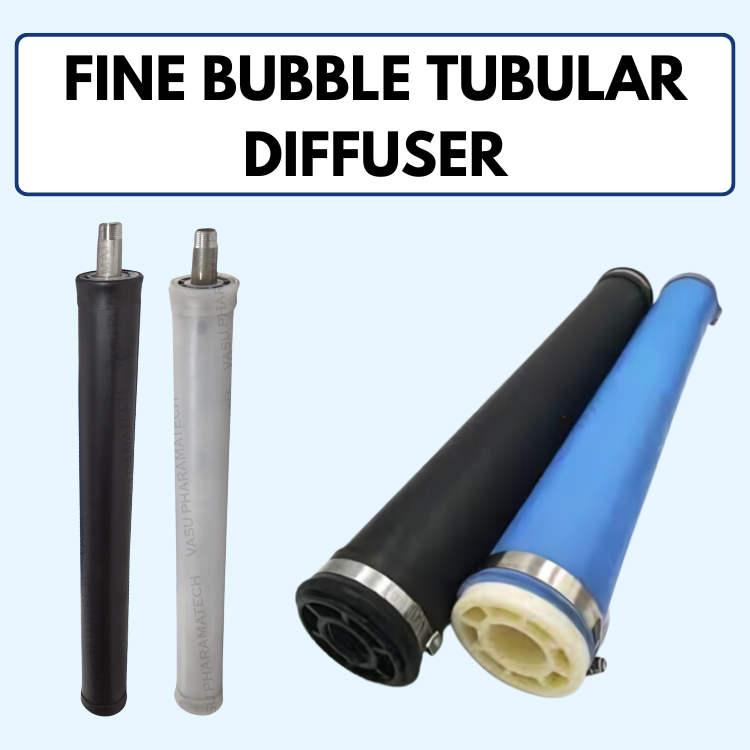

fine bubble tubular diffuser

SPECIFICATION
fine bubble tubular diffuser
SIZES

63 X 620, 63 X 1020, 90 X 1020 mm

SUPPORT PIPE OD

63, 90 mm

MEMBRANE ID

63, 90 mm

MOC OF MEMBRANE

EPDM/SILICONE

AIR FLOW RANGE

2-7.5, 2-10, 3-15 m³/hr

BUBBLE SIZE

0.8 - 1.9 mm

max pressure allowed

1.5 kg/cm³

Get Latest Quote
overview

Fine Bubble Tubular Diffuser: The Smart Choice for Efficient Aeration | Vasu Pharmatech

In any biological wastewater treatment system—whether it’s a municipal STP or an industrial ETP—aeration is one of the most critical processes. It supports the growth of aerobic bacteria that break down organic matter in the wastewater. Without proper aeration, the treatment process slows down, becomes inefficient, and can even fail altogether.

One of the most effective tools for aeration today is the fine bubble tubular diffuser. It’s reliable, energy-efficient, and delivers a high rate of oxygen transfer to the water. At Vasu Pharmatech, we manufacture and supply fine bubble tube diffusers designed to handle real-world wastewater challenges in India’s industrial and municipal setups.

Let’s break down what this technology is, how it works, and why it could be the right fit for your treatment system.

Fine Bubble Diffuser

Types Of Fine Bubble Diffusers

EPDM Fine Bubble Diffuser
silicon fine bubble diffuser

Technical Specifications of Our Fine Bubble Tube Diffusers



SpecificationTypical Range
Length500 mm to 1000 mm
Diameter63 mm to 90 mm
MaterialEPDM or Silicone
Operating Airflow1.5 – 5.0 m³/hr
Bubble Size1 – 3 mm
Oxygen Transfer Efficiency20 – 40%
Pressure Drop<3500 Pa
Connection TypeThreaded, Socket, or Customized

How Does It Work?

The process is straightforward but highly effective:

  1. Compressed air is pumped through pipelines from a blower.

  2. The air enters the diffuser’s inner pipe and passes through the membrane.

  3. The membrane has micro-perforations that open under pressure to release air.

  4. The released air forms fine bubbles, which spread evenly in the water.

  5. As the bubbles rise, they transfer oxygen to the microorganisms in the tank.

The better the oxygen transfer, the more effective the biological breakdown of organic matter in the wastewater.

Key Features

Why Fine Bubble Diffusers Outperform Other Aeration Methods

Aeration is the most energy-consuming part of a wastewater plant—sometimes accounting for over 50% of the total power usage. That’s why efficiency here makes a big difference.

Compared to coarse bubble diffusers, surface aerators, or mechanical blowers, fine bubble tubular diffusers provide:

  • Higher oxygen transfer efficiency (OTE): Fine bubbles stay in contact with water longer.
  • Lower energy cost: Less air and blower pressure are needed.
  • Better mixing: Helps prevent settling and dead zones.
  • Reduced operational noise: No mechanical agitation means quieter operation.
  • Compact and flexible design: Suitable for both new plants and retrofits.
testimonials

What Our Clients Say About Us

5/5
PP Filter Press

Vasu’s PP Filter Press gave us consistent output with zero downtime. Quality is better than other vendors.

Sanjay Patel
Ahmedabad
5/5
MBBR Media

We switched to Vasu’s MBBR Media in our ETP plant. Biofilm grew faster and media remained stable under load.

Neeraj Saini
Bhopal
5/5
Tube Deck Media

Tube Deck Media from Vasu reduced our settling time and sludge issues. Good performance in compact STPs.

Pooja Trivedi
Jaipur
5/5
Coarse Bubble Diffuser

Coarse Bubble Diffuser gave even air distribution. Setup was quick and it’s been running well for over a year.

Manish Goyal
Nashik
5/5
Fine Bubble Diffusers

We installed Fine Disc Diffusers in our plant. Noticed better oxygen levels and lower energy use immediately.

Anisha Roy
Kolkata
5/5
Tube Settler Media

We trust Vasu for Tube Settler Media. The material quality is great and works efficiently even in high TSS.

Nisha Bhandari
Udaipur
5/5
PP Filter Press

We’ve been using PP Filter Press from Vasu for 2+ years. Strong build, smooth performance, and zero leakage issues.

Ramesh Verma
Vadodara
5/5
MBBR Media

Vasu’s MBBR Media helped improve our STP output quickly. No clogging, fast biofilm growth, and great durability.

Ankit Sharma
Pune
5/5
Tube Deck Media

After installing their Tube Deck Media, settling improved instantly. Easy to handle and works well in clarifiers.

Meena Desai
Indore

Where Are Fine Bubble Tube Diffusers Used?

These diffusers are widely used in wastewater treatment systems that require aerobic digestion. Some common applications include:

  • Municipal Sewage Treatment Plants (STP): For biological treatment of domestic wastewater.

  • Industrial Effluent Treatment Plants (ETP): Especially in industries like pharmaceuticals, food processing, chemicals, and textiles.

  • Common Effluent Treatment Plants (CETP): Serving industrial clusters where individual units discharge into a shared treatment facility.

  • Sludge Stabilization Tanks: Where organic solids need further breakdown.

  • Aquaculture: For maintaining dissolved oxygen levels in ponds and tanks.

Whether your need is large-scale or decentralized, these diffusers fit into most biological systems without complex modifications.

Common Problems Solved by Fine Bubble Diffusers

If you’re facing any of the following issues in your existing aeration system, a fine bubble tubular diffuser might be the solution:

  • Uneven oxygen levels in tanks

  • Frequent clogging or scaling of aeration devices

  • High blower energy consumption

  • Short service life of existing diffusers

  • Difficulty in maintenance or replacement

By switching to a high-quality diffuser from a reliable manufacturer, these problems can often be reduced or eliminated.

Fine Bubble vs Coarse Bubble: What’s the Difference?

Let’s look at how these two types of diffusers compare in real-world use.

FeatureFine Bubble DiffuserCoarse Bubble Diffuser
Bubble Size1 – 3 mm>5 mm
Oxygen Transfer RateHigh (~20–40%)Low (~5–15%)
Energy UseLower (more efficient)Higher
MaintenanceModerateLower (but less efficient)
Ideal UseBiological treatment (STP/ETP)Mixing-heavy zones or grit removal

While coarse bubble systems are better for simple mixing or in grit-heavy areas, fine bubble diffusers are the clear winner for aerobic biological treatment.

Real Considerations for Choosing the Right Diffuser

The market is full of options, but not all fine bubble diffusers are equal. When evaluating your next purchase, consider:

  • Material quality: Inferior membranes may crack or clog quickly.

  • Pore size consistency: Inconsistent bubble sizes reduce aeration performance.

  • Installation type: Make sure the connection matches your manifold system.

  • Support & availability: You need local expertise, spare parts, and after-sale support.

At Vasu Pharmatech, we’ve built our reputation by addressing all these concerns up front. Our diffusers are locally manufactured, rigorously tested, and built to meet Indian conditions—whether in Delhi’s municipal setups or industrial zones across the country.

Maintenance Tips to Extend Life and Performance

Even the best diffuser system needs occasional care. Here are some simple but effective tips:

  • Inspect membranes regularly for scaling or hard deposits.

  • If fouling occurs, clean using mild acids or water jetting, depending on the material.

  • Avoid running the system at airflow rates too far below or above the recommended range—this can damage the membrane over time.

  • Monitor pressure drop across the diffuser line. A sudden increase often signals clogging.

  • If the system allows, rotate diffuser zones for cleaning without full plant shutdown.

Scheduled maintenance every 6 to 12 months can significantly extend service life and maintain optimal aeration.

A Practical, Scalable Solution

Whether you’re running a small ETP or a large STP, fine bubble tubular diffusers offer a scalable, reliable solution for efficient aeration. They fit easily into various system sizes and improve not just oxygen transfer—but the overall treatment process.

Key benefits include:

  • High oxygen transfer efficiency for better microbial activity
  • Lower energy costs by reducing blower load
  • Less maintenance thanks to clog-resistant membranes
  • Even air distribution that prevents dead zones
  • Extended equipment life due to reduced wear
  • Regulatory compliance with better BOD/COD removal
  • Easy retrofitting into new or old systems
  • Works with diverse waste streams, from municipal to industrial

Conclusion

A fine bubble tubular diffuser isn’t just an accessory—it’s the heart of any well-functioning aeration system, especially in wastewater treatment plants, ETPs, and STPs. The efficiency of your oxygen transfer, the energy consumption of your blower systems, and the overall treatment quality of your plant heavily depend on the quality and compatibility of your diffuser system.

Choosing the right diffuser means more than just technical compatibility. It directly impacts your operational costs, aeration efficiency, and environmental compliance. An effective diffuser can lead to significant reductions in energy bills, lower maintenance downtime, and more consistent dissolved oxygen levels—making it a crucial investment for long-term plant health and sustainability.

At Vasu Pharmatech, we understand that your requirements are unique. That’s why we design and manufacture fine bubble tubular diffusers that are engineered for precision, durability, and performance. Whether you’re running a compact ETP plant in Delhi or a large-scale STP facility elsewhere in India, our diffusers deliver consistent results with minimal hassle.

FAQ

A fine bubble tubular diffuser is an aeration device used in ETPs and STPs to disperse oxygen into wastewater through micro-sized air bubbles. These fine bubbles rise slowly, increasing oxygen transfer efficiency and improving biological treatment.



Fine bubble diffusers provide higher oxygen transfer efficiency, lower energy consumption, and better mixing. They are ideal for biological treatment processes where precise and efficient aeration is essential.

The lifespan varies depending on membrane material and operating conditions. On average, EPDM and silicone-based diffusers can last between 3 to 5 years with proper maintenance.

Yes, fine bubble tubular diffusers are suitable for both industrial and municipal applications, especially where high-efficiency oxygen transfer and cost-effective operations are critical.

Key factors include airflow rate, tank dimensions, membrane material, resistance to clogging, and compatibility with your existing aeration system. It’s also important to consider manufacturer support and after-sales service.
