Fine Diffuser
SPECIFICATION
SHAPE
Tubular & Disc Type
DIA SIZE
80mm to 150mm
MOC OF MEMBRANE
EPDM / SILICONE
MAX. PRESSURE ALLOWED
1 kg/cm2 - 1.5kg/cm2
AIR FLOW RANGE
1-10 m3/hr
MAX. OPERATING TEMP.
60° C
Types Of Bubble Diffusers
overview
Fine Diffuser Solutions by Vasu Pharmatech – Smart Aeration for Better Treatment
Efficient aeration is the backbone of any sewage or industrial wastewater treatment system. A well‑designed Fine Diffuser improves oxygen transfer, cuts energy use, reduces maintenance needs, and boosts overall performance. That’s why choosing the right fine bubble air diffuser is crucial.
At Vasu Pharmatech, we’re known for creating and supplying world‑class fine bubble diffusers—including fine bubble tube diffusers and fine bubble disc diffusers—designed for durability and consistent performance. Whether you’re upgrading an old system or building a new treatment plant, our solutions are built to work hard and last long.
Fine Diffusers: How They Work
A fine diffuser is a device used in aeration tanks to break air into microscopic bubbles. These bubbles rise slowly through the water, allowing oxygen to transfer efficiently into wastewater. This oxygen supports the bacteria that break down organic waste, making the treatment process faster and cleaner.
You’ll hear terms like fine air diffuser or fine bubble diffuser used interchangeably. All refer to the same principle—delivering air in tiny bubbles for maximum contact with water.
Why bubble size matters: At 1–3 mm, fine bubbles have a much higher surface area per volume than coarse bubbles. That means more oxygen, less power usage, and faster system response.
Real Problems in Treatment Systems—and How Fine Diffusers Solve Them
Treatment plant operators in India typically face these challenges:
- Low oxygen levels in tanks
- High blower power costs
- Uneven air distribution
- Clogging and frequent diffuser replacements
- Short diffuser lifespan leading to system downtime
Let’s unpack these:
- When the diffuser creates coarse, large bubbles, oxygen doesn’t enter water efficiently. The tank ends up with poor dissolved oxygen levels, slowing microbial action.
- Old or mismatched diffuse setups force blowers to work overtime, increasing your electricity bill.
- Poor diffuser spread causes dead zones in a tank—areas where treatment stops.
- Many diffusers clutter up fast, especially in dirty or gritty water, leading to regular shutdowns and cleaning.
- Low‑grade diffusers lose flexibility or crack quickly, resulting in early replacement.
The solution? A quality fine bubble diffusers, installed correctly and matched to your tank. With our fine bubble tube diffuser or fine bubble disc diffuser, you get superior oxygen transfer, low energy use, and longer operating life.
Our Fine Diffuser Products

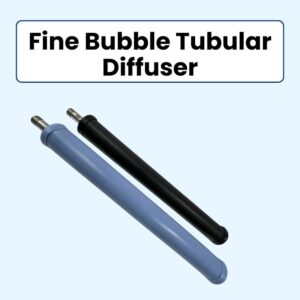

Fine Bubble Tube Diffuser
- Long, perforated tubes fitted with EPDM or silicone membranes
- Bubble size: 1–3 mm
- Best for large aeration tanks or long diffuser runs
- Benefits: High oxygen efficiency, low maintenance, suited for large flows
Fine Bubble Disc Diffuser
- Round, compact disc shape
- Bubble size: 1–3 mm
- Ideal for tanks with limited space or multiple zones
- Benefits: Uniform bubble distribution, easy installation, excellent coverage
Coarse Bubble Diffuser
- Produces larger bubbles (4–8 mm)
- Not a fine diffuser—but worth offering for specific zones such as grit chambers or equalization tanks
- Benefits: Great for mixing and grit handling, tough in solids-rich streams
Comparison Table:
| Diffuser Type | Bubble Size | Oxygen Transfer | Best Application |
|---|---|---|---|
| Fine Bubble Tube Diffuser | 1–3 mm | High | Large STP/ETP tanks, long runs |
| Fine Bubble Disc Diffuser | 1–3 mm | Very high | Compact or zoned tanks, activated sludge |
| Coarse Bubble Diffuser | 4–8 mm | Moderate | Mixing, grit/sludge zones |
Fine Diffuser Price—What to Expect
If you’re searching for fine bubble diffuser price, you’ll find there’s a range depending on:
- Diffuser type (tube or disc)
- Quantity and configuration
- Membrane material (EPDM vs silicone)
- Order volume (bulk pricing)
At Vasu Pharmatech, we offer competitive rates but focus on total value, not just upfront cost. A low‑priced diffuser often results in higher power bills or early replacements, increasing your lifetime cost—so we price for reliability, efficiency, and durability.
Installation & Maintenance Is Simple
We design fine bubble air diffusers to be user-friendly:
- Modular systems fit into existing pipe runs
- Membranes can be replaced without special tools
- Uniform air distribution even at low blower pressures
- Retrofitting into old plants is straightforward
Maintenance? Minimal. Clean your membranes every 6–12 months based on your water type. Most systems run 5–7 years before replacement. With Vasu Pharmatech diffusers, replacement cycles are longer and downtime is minimal.
Why Choose Vasu Pharmatech
In India’s STP/ETP sector, we stand out because:
- We’re a dedicated fine diffuser manufacturer with deep industry experience
- All products are built for Indian conditions—handling grit, heat, variable water loads
- Support goes beyond delivery: we help with layout design, blower sizing, tank coverage
- Custom configurations tailored to your site
- Fast delivery, bulk availability, consistent quality
We don’t just offer fine bubble air diffuser products—we offer solutions that deliver cleaner water, lower power bills, and long-term reliability.
Key Benefits of Using a Fine Diffuser
When you invest in a proper fine bubble air diffuser, these advantages become clear:
- Better oxygen transfer, leading to faster and cleaner treatment
- Energy savings, as blowers don’t need to work as hard
- More stable performance, reducing shock from flow or load changes
- Longer diffuser life, with high-grade materials and clog resistance
- Lower total cost of ownership, thanks to fewer replacements and less maintenance
Who Uses Fine Diffusers?
Our fine diffusers are used across these sectors:
- Municipal STP plants
- Industrial ETP systems (food, dairy, pharma, chemical plants)
- Textile and paper mills
- Beverage and brewery lines
- Decentralized or onsite sewage systems
From small urban STPs to multi‑million litre sewage treatment facilities, fine bubble units are essential for efficient biological treatment.
Tips to Maximize Diffuser Performance
To get the best out of your fine diffuser:
- Ensure tank depth and airflow match diffuser specs
- Lay out diffusers to avoid dry spots or overcrowding
- Choose the right membrane material—EPDM for general use, silicone for chemical resistance
- Schedule membrane cleaning every 6–12 months
- Monitor dissolved oxygen regularly and adjust blower settings
Debunking Common Myths
“Fine diffusers clog too easily.” Not true. Modern EPDM membranes resist clogging and are easy to clean.
“They only work in big plants.” False. Fine bubble disc diffusers are perfect for small or modular STPs.
“They cost too much.” While the initial fine bubble diffuser price may be higher, lower operating and maintenance costs make them cheaper over time.
Conclusion
For any treatment plant, having an efficient aeration system is key to saving energy, improving overall performance, and keeping maintenance low. Whether you’re dealing with municipal sewage or industrial effluent, the right diffuser plays a big role in how effectively your system runs.
At Vasu Pharmatech, we design our products to handle real on-ground challenges like poor oxygen levels, inconsistent airflow, or unnecessary power usage. Our range includes both flexible and rugged options that fit different plant sizes and conditions.
If you’re setting up a new facility or upgrading an old one, don’t overlook the importance of aeration. Even small improvements here can lead to big results — from better water quality to reduced running costs.
We’re here to help you get the most out of your treatment system with aeration solutions that are built to perform, built to last.
A fine diffuser is an aeration device used in sewage treatment plants (STPs) to break air into tiny bubbles. These fine bubbles increase oxygen transfer efficiency, which helps bacteria break down organic waste faster and more effectively.
A fine bubble diffuser creates smaller bubbles (1–3 mm), ideal for high oxygen transfer and energy efficiency. In contrast, a coarse bubble diffuser produces larger bubbles (4–8 mm), which are better for mixing and handling high solids but less efficient in oxygen transfer.
Both work well. A fine bubble tube diffuser is ideal for long tanks and uniform air distribution. A fine bubble disc diffuser works best in compact or modular STP setups. Your plant layout and flow will decide the best choice.
The fine bubble diffuser price in India depends on the type (tube or disc), membrane quality (EPDM or silicone), and quantity. At Vasu Pharmatech, we offer cost-effective prices with long-term value in mind — not just low cost, but low total lifecycle cost.
Vasu Pharmatech is one of the trusted air diffuser for STP plant manufacturers in India, offering durable, efficient, and clog-resistant diffusers. We supply fine air diffusers, fine bubble tube diffusers, and disc diffusers that match Indian STP needs — with expert support from start to finish.
