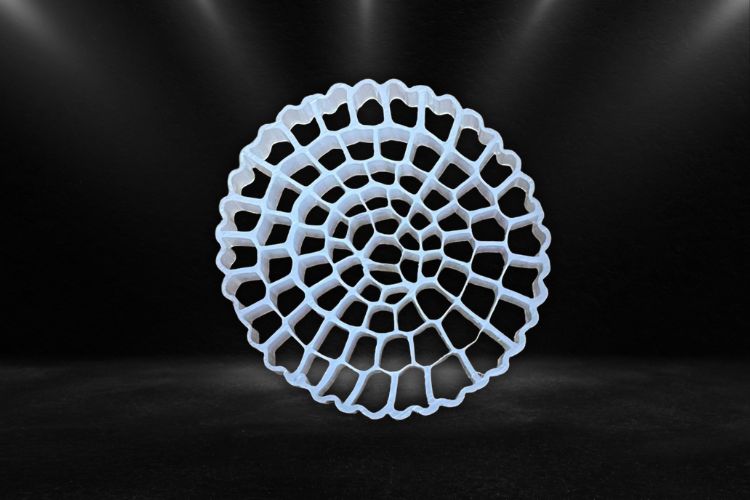

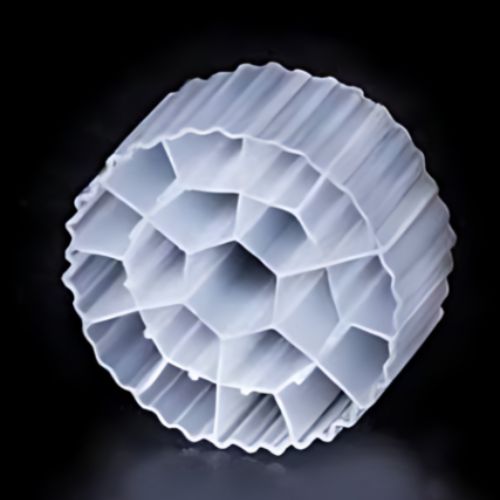

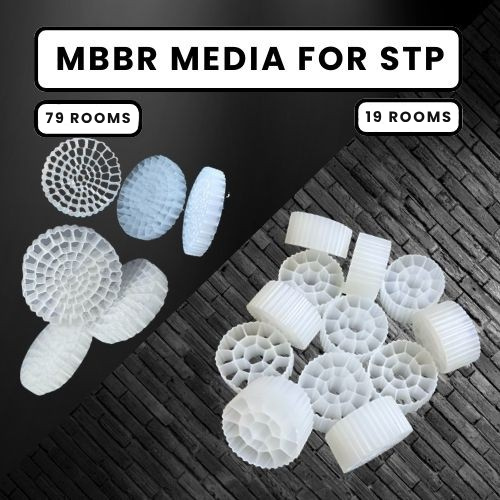

MBBR Media for STP
SPECIFICATION
Size
12 x 25 mm & 4x25 mm
NO. OF HOLES
19 & 79
SURFACE AREA
>6OO m²/m³ & >16OO m²/m³
DENSITY
0.94 - 0.96 gm/cm³
DOSING RATIO
15% to 65%
MEMBRANE FORMING TIME
3-15 Days
MOC
VIRGIN HDPE
vasu pharmatech
MBBR Media for STP: A Practical Guide to Efficient Sewage Treatment
Treating wastewater efficiently is one of the biggest challenges for growing cities, industries, and housing projects. With increasing population and industrial activity, sewage treatment plants (STPs) need to be more compact, cost-effective, and reliable. Among the most popular and proven technologies used today is MBBR technology in STP—and at the core of this technology lies the MBBR filter media.
This article offers a complete, user-focused explanation of MBBR Media for STP: what it is, how it works, why it matters, and how to select the right one for your system. If you’re setting up or upgrading a sewage treatment plant, understanding this component is essential.
What is MBBR Media?
MBBR stands for Moving Bed Biofilm Reactor, a modern and efficient method of biological wastewater treatment. This technology relies on the use of specially engineered plastic components known as MBBR media, which provide a large surface area for the growth of beneficial microorganisms. These microorganisms play a key role in breaking down organic pollutants present in sewage.
In a standard MBBR-based STP (Sewage Treatment Plant), these media pieces are added to the aeration tank. They are lightweight and designed to float freely, moving continuously with the help of air bubbles provided by the aeration system. This constant motion ensures that the media are evenly distributed and come into regular contact with the incoming wastewater.
The surface of the MBBR filter media is designed to support the formation of a biofilm—a thin, sticky layer of bacteria that clings to the media. These bacteria are responsible for the biological degradation of organic matter such as BOD (Biochemical Oxygen Demand) and COD (Chemical Oxygen Demand). They consume the pollutants, convert them into simpler compounds, and help purify the water.
Why MBBR Technology is Popular in STPs
Over the years, MBBR technology in STP has become widely adopted across residential, commercial, and industrial wastewater treatment setups. Its advantages are hard to ignore:
- Compact design – Ideal for locations where space is limited.
- Low maintenance – No complex moving parts inside the reactor.
- Adaptable – Performs well under variable load conditions.
- Scalable – Easy to upgrade if wastewater volume increases.
- Efficient treatment – Achieves good BOD and COD removal rates.
All of this is made possible thanks to the correct choice and use of MBBR media.
testimonials
What Our Clients Say About Us
5/5
PP Filter Press
Vasu’s PP Filter Press gave us consistent output with zero downtime. Quality is better than other vendors.
Sanjay Patel
Ahmedabad
5/5
MBBR Media
We switched to Vasu’s MBBR Media in our ETP plant. Biofilm grew faster and media remained stable under load.
Neeraj Saini
Bhopal
5/5
Tube Deck Media
Tube Deck Media from Vasu reduced our settling time and sludge issues. Good performance in compact STPs.
Pooja Trivedi
Jaipur
5/5
Coarse Bubble Diffuser
Coarse Bubble Diffuser gave even air distribution. Setup was quick and it’s been running well for over a year.
Manish Goyal
Nashik
5/5
Fine Bubble Diffusers
We installed Fine Disc Diffusers in our plant. Noticed better oxygen levels and lower energy use immediately.
Anisha Roy
Kolkata
5/5
Tube Settler Media
We trust Vasu for Tube Settler Media. The material quality is great and works efficiently even in high TSS.
Nisha Bhandari
Udaipur
5/5
PP Filter Press
We’ve been using PP Filter Press from Vasu for 2+ years. Strong build, smooth performance, and zero leakage issues.
Ramesh Verma
Vadodara
5/5
MBBR Media
Vasu’s MBBR Media helped improve our STP output quickly. No clogging, fast biofilm growth, and great durability.
Ankit Sharma
Pune
5/5
Tube Deck Media
After installing their Tube Deck Media, settling improved instantly. Easy to handle and works well in clarifiers.
Meena Desai
Indore
How MBBR Media Works in STP Systems
The process begins when wastewater enters the aeration tank of the sewage treatment plant. Here’s how MBBR media helps:
Air diffusers pump oxygen into the tank, creating mixing and agitation.
MBBR filter media float freely in the tank and keep moving.
Bacteria grow on the surface of the media and form a biofilm layer.
These microbes consume the organic pollutants present in sewage.
Treated water exits the system after the organic load is reduced.
Sludge (settled solids) is removed separately.
The key to this process is keeping the bacteria healthy and active. And for that, the media must be designed to provide the right conditions—enough surface area, good flow, and proper protection.
Qualities of Good MBBR Media
All MBBR media may look similar, but not all are effective. If you want reliable performance and long service life, the quality of the media matters. Here are the characteristics of good MBBR media for STP:
Material: Virgin HDPE (high-density polyethylene) is ideal. It’s durable, chemical-resistant, and safe for bacteria.
Design: Shapes like cylindrical or star-type ensure good movement and surface exposure.
Surface Area: More surface area means more space for bacteria. Look for media with 350–1200 m²/m³ surface area.
Buoyancy: Media must float well but not be too light. Balanced density keeps them suspended and mobile.
Durability: A good set of MBBR media should last at least 10 years.
Non-clogging: Open structure avoids blockage and supports smooth water flow.
A well-designed MBBR STP design relies on selecting media with these qualities. It ensures stable operation even when sewage load or composition changes.
Types of MBBR Media
There’s no one-size-fits-all when it comes to MBBR filter media. Different types are available depending on the application and plant size:
- K1 Type – Basic cylindrical design, typically 10 mm diameter; used in small systems.
- K3 Type – Slightly larger, offers more surface area.
- Star-Shaped Media – High surface area and good mixing properties; common in industrial STPs.
- Hexagonal Media – Excellent for aerobic and anaerobic biofilms.
- Customized Designs – Made to meet specific flow or space requirements.
Each of these types works with different MBBR STP designs, and selection should be based on treatment goals, wastewater characteristics, and tank design.
Common Challenges Without Proper MBBR Media
Using low-grade or mismatched MBBR media can lead to serious problems in an STP:
Incomplete treatment – Poor biofilm formation leads to high BOD/COD in outlet.
Clogging issues – Cheap media designs can trap solids and block movement.
Reduced media life – Recycled plastic or thin walls can break or degrade quickly.
Higher operating costs – Inefficiency demands more energy, chemicals, and labor.
Inconsistent performance – Fluctuations in sewage load may crash biological activity.
To avoid these problems, careful selection and regular review of media condition are essential.
A Look at Key Media Specifications
To make media comparison easier, here’s a simple table of typical specifications to consider:
| Specification | Ideal Range |
|---|---|
| Material | Virgin HDPE |
| Shape | Cylindrical / Star / Hexagonal |
| Diameter | 10–25 mm |
| Surface Area | 350–1200 m²/m³ |
| Bulk Density | 0.93–0.97 g/cm³ |
| Lifespan | 10 years or more |
| Operating Temp | 5–55°C |
These values may vary based on the brand or manufacturer, but the above range covers most efficient products in the market today.
Key Considerations While Selecting MBBR Media
Choosing the right MBBR media for STP is not just about buying plastic parts. It requires understanding your system’s needs. Here are the main factors you should evaluate:
STP Size and Capacity: Larger systems need media with higher surface area and better flow characteristics.
Wastewater Type: Domestic sewage is different from industrial effluents. Some contain oils or chemicals that may affect media performance.
Treatment Goals: Whether the aim is BOD reduction, ammonia removal, or nutrient control, different bacteria types and media are needed.
Tank Design: The aeration system, baffle design, and retention time all affect how media performs.
Budget: Long-term cost efficiency matters. Low upfront cost might mean higher operating or replacement costs later.
Selecting media without technical review may lead to underperformance or even STP failure. It’s better to consult with experts or experienced suppliers who can match your system needs accurately.
Installation and Handling Tips
Once you’ve selected good quality MBBR media, installing and managing it properly ensures smooth operation:
Pre-wash the media before placing it in the tank to remove any dust.
Add media gradually, not all at once—this helps bacteria grow uniformly.
Maintain DO (Dissolved Oxygen) levels between 2–4 mg/L in the aeration tank.
Use proper diffuser placement to promote even mixing.
Ensure there is no sharp object or rough surface inside the tank that can damage the media.
Once installed, MBBR media doesn’t require daily attention, but a basic maintenance check every few months can prevent minor issues from becoming major ones.
Conclusion
MBBR Media for STP plays a silent but remarkably powerful role in the functioning of modern sewage and wastewater treatment systems. It acts as the foundation upon which effective biological treatment is built. These specially designed plastic carriers create the right environment for beneficial bacteria to grow, multiply, and perform their essential task—breaking down the harmful organic pollutants present in sewage. When the correct media is selected and implemented properly, it not only improves treatment efficiency but also reduces operational costs, enhances process stability, and ensures compliance with environmental discharge norms.
Over time, this choice has a significant impact on the overall health and sustainability of the sewage treatment plant. The media becomes a long-term asset—quietly working 24/7, with minimal intervention, to keep your STP running smoothly. It supports higher organic load capacity, adapts to fluctuations in influent quality, and allows for compact system design without sacrificing performance.
However, the opposite is equally true and often overlooked. If the MBBR filter media used in your STP is of poor quality, incorrectly sized, or not suitable for your specific treatment conditions, it can lead to serious issues. Inadequate surface area, poor buoyancy, or clogging tendencies can weaken the biofilm development process, reduce oxygen transfer, and compromise bacterial activity. This leads to higher energy consumption, poor effluent quality, increased sludge generation, and in some cases, even regulatory non-compliance. A poorly functioning system may also demand frequent manual intervention and maintenance, adding both operational complexity and cost.
If you’re responsible for designing, managing, or upgrading a sewage treatment facility—whether it’s for a housing society, industrial unit, hotel, institution, or a municipal setup—it is essential to take time to understand the MBBR technology in STP and the specific type of media it requires. Don’t treat the media as just another purchase; treat it as a critical investment. Every STP has unique parameters: inlet water quality, flow rate, BOD/COD levels, and discharge standards. The choice of media should align precisely with these technical needs.
FAQ
MBBR Media are small plastic carriers that promote the growth of biofilm in sewage treatment plants (STPs). As wastewater flows through the aeration tank, these media support microorganism growth that helps break down organic pollutants efficiently.
MBBR technology improves sewage treatment by increasing efficiency, saving space, reducing maintenance, and providing stable performance even under fluctuating loads.
The dosing ratio of MBBR Media typically ranges from 15% to 65% of the tank volume, depending on the type and volume of wastewater and the desired treatment output.
Biofilm formation usually takes between 3 to 15 days, depending on wastewater quality and aeration conditions.
Vasu Pharmatech’s MBBR Media are made from Virgin HDPE, offering high surface area, chemical resistance, long life, and faster biofilm growth for reliable sewage treatment performance.
