Tubular Diffuser

SPECIFICATION

PLAN SETTLING AREA

60° SLOPE : 11 m2/ m3
50° SLOPE : 13 m2/m3

CROSS SECTIONAL AREA

120 mm X 44 mm

MOC / COLOUR

Pvc / Black

HYDRAULIC RADIUS

15 mm

THICKNESSES

1 mm ± .01 mm

FITTING ARRANGEMENT

Tongue & Groove

MAX. CONTINUOUS OPERATlNG TEMP.

55° C

overview

Tube Settler Media

The demand for efficient water and wastewater treatment technologies has grown rapidly in recent years. Among these technologies, the tubular diffuser has gained immense popularity due to its high oxygen transfer efficiency, durability, and suitability for different treatment plants. Whether it is diffusers in STP (sewage treatment plants) or industrial effluent treatment, tubular diffusers provide reliable aeration solutions.

In this comprehensive guide, we will explore everything about tubular diffusers—how they work, different types, benefits, applications, comparisons with alternatives, and why Vasu Pharmatech is a trusted name as a tubular diffuser manufacturer.

Our Range of Fine Bubble Tubular Diffusers

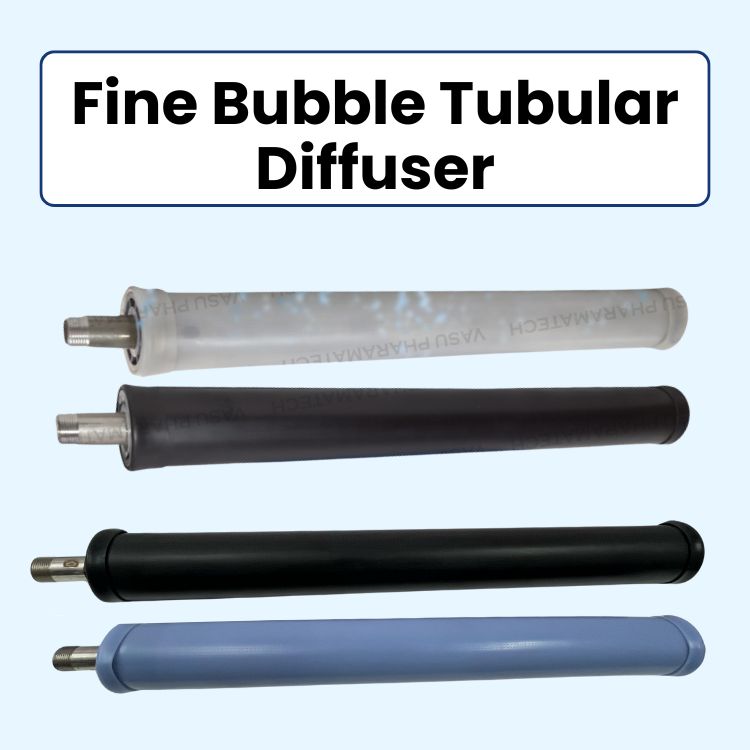

Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Tubular Diffuser by Vasu Pharmatech is an efficient aeration solution designed for wastewater treatment applications. Also known as Fine Bubble Tube Diffuser, and supplied by trusted Fine Bubble Tube Diffuser Manufacturers and Fine Bubble Diffuser Suppliers, this diffuser is engineered to deliver uniform fine bubbles with reliable oxygen transfer performance.

Bubble Size: Fine bubble
Air Flow Rate: 2 – 7.5 m³/hr
Diffuser Type: Tube
Size: 63 mm & 90 mm
Membrane Material: EPDM & Silicone
Body Material: PP
Pipe Connection: 3/4 inch BSP
Application: STP, ETP, Aeration Tank
Brand: Vasu Pharmatech

Fine Bubble Tubular Diffusers are designed to handle high volumetric airflow while producing consistent fine bubbles for efficient oxygen transfer. The perforated membrane design improves aeration efficiency and helps prevent backflow, ensuring stable performance and long service life in continuous wastewater treatment operations.

80mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Tubular Diffusers by Vasu Pharmatech are high-performance aeration devices used in wastewater treatment systems. Also known as Fine Bubble Tube Diffuser, these diffusers are designed to deliver uniform fine bubbles for maximum oxygen transfer efficiency in STP, ETP, and aeration tanks.

Bubble Size: Fine bubble
Air Flow Rate: 3 m³/hr
Diffuser Type: Disc
Size: 80 mm
Membrane Material: EPDM
Pipe Connection: 3/4 inch BSP
Max Operating Temperature: 60°C
Brand: Vasu Pharmatech

Fine Bubble Tubular Diffusers are engineered to handle high-volume air discharge with excellent efficiency. Manufactured using high-quality EPDM or Silicone membranes with precision perforation, they produce fine bubbles that maximize oxygen transfer. The design also helps prevent backflow, ensuring reliable, long-term performance in wastewater treatment applications.

Specifications (Models Available):

VPFBD 600: 63 × 620 mm | Air Flow: 2 – 7.5 m³/hr
VPFBD 1000: 63 × 1020 mm | Air Flow: 2 – 10 m³/hr
VPFBD 1090: 90 × 1020 mm | Air Flow: 3 – 15 m³/hr

63 x 1000 mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

63 × 1000 mm EPDM Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment applications. This Fine Bubble Tubular Diffuser handles high volumetric air discharge while delivering uniform fine bubbles for improved oxygen transfer.

Bubble Size: Fine bubble
Air Flow Rate: 3 m³/hr (Air Flow Range: 2–10 m³/hr)
Diffuser Type: Tube
Size: 63 mm
Overall Dimensions: 63 × 1000 mm
Membrane Material: EPDM
Pipe Connection: 3/4 inch BSP
Max Pressure Allowed: 1.5 kg/cm²
Model Number: VFPBD 1000
Brand: Vasu Pharmatech

The precision-perforated EPDM membrane ensures high oxygen transfer efficiency and uniform bubble distribution. The design also helps prevent backflow, ensuring stable and long-term performance in STP, ETP, and aeration tank systems.

90 x 1000 mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. The VPFBD 1090 Silicone Fine Bubble Tubular Diffuser handles high volumetric air discharge while delivering uniform fine bubbles for improved oxygen transfer efficiency.

Bubble Size: Fine bubble
Air Flow Rate: 3 m³/hr (Air Flow Range: 3–15 m³/hr)
Diffuser Type: Tube
Size: 63 mm
Overall Dimensions: 90 × 1000 mm
Membrane Material: EPDM / Silicone
Pipe Connection: 3/4 inch BSP
Max Pressure Allowed: 1.5 kg/cm²
Model Number: VFPBD 1000
Brand: Vasu Pharmatech

These Fine Bubble Tubular Diffusers use precision-perforated membranes to ensure high oxygen transfer efficiency and uniform bubble distribution. The design also helps prevent backflow, ensuring stable, long-term performance in STP, ETP, and aeration tank applications.

63 x 1000mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Silicone Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient and consistent aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser handles high volumetric air discharge while producing uniform fine bubbles for improved oxygen transfer efficiency.

Bubble Size: Fine bubble
Air Flow Rate: 3 m³/hr (Air Flow Range: 2–10 m³/hr)
Diffuser Type: Tube
Size: 63 mm
Overall Dimensions: 63 × 1000 mm
Membrane Material: Silicone
Pipe Connection: 3/4 inch BSP
Max Pressure Allowed: 1.5 kg/cm²
Model Number: VFPBD 1000
Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures high oxygen transfer efficiency and uniform bubble distribution. The diffuser design also helps prevent backflow, ensuring reliable and long-term performance in STP, ETP, and aeration tank applications.

63 x 1020mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Silicone Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser handles high volumetric air discharge while producing uniform fine bubbles for improved oxygen transfer efficiency.

Bubble Size: Fine bubble
Air Flow Rate: 3 m³/hr (Air Flow Range: 2–7.5 m³/hr)
Diffuser Type: Tube
Size: 63 mm
Overall Dimensions: 63 × 1020 mm
Membrane Material: Silicone
Pipe Connection: 3/4 inch BSP
Max Pressure Allowed: 1.5 kg/cm²
Model Number: VFPBD 1000
Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures efficient oxygen transfer and uniform bubble distribution. The design also helps prevent backflow, ensuring reliable and long-term performance in STP, ETP, and aeration tank applications.

90 x1000mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Silicone Fine Bubble Tubular Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser is suitable for applications where reliable oxygen transfer and uniform air distribution are required.

Bubble Size: Fine bubble
Air Flow Rate: 3 m³/hr (Air Flow Range: 2–7.5 m³/hr)
Diffuser Type: Tube
Size: 63 mm
Overall Dimensions: 90 × 1000 mm
Membrane Material: Silicone
Pipe Connection: 3/4 inch BSP
Max Pressure Allowed: 1.5 kg/cm²
Model Number: VFPBD 1000
Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures efficient oxygen transfer and uniform fine bubble formation. The diffuser design helps prevent backflow during operation, ensuring stable and long-term performance in STP, ETP, and aeration tank applications.

90 x1020mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Diffuser by Vasu Pharmatech is designed for efficient aeration in wastewater treatment systems. This Fine Bubble Tubular Diffuser can handle high volumetric air discharge while producing uniform fine bubbles for effective oxygen transfer. It is widely used in STP, ETP, and aeration tank applications for reliable and long-term performance.

Bubble Size: Fine bubble
Air Flow Rate: 3 m³/hr (Air Flow Range: 3–15 m³/hr)
Diffuser Type: Tube
Size: 63 mm
Overall Dimensions: 90 × 1020 mm
Membrane Material: Silicone
Pipe Connection: 3/4 inch BSP
Max Pressure Allowed: 1.5 kg/cm²
Model Number: VFPBD 1000
Brand: Vasu Pharmatech

The precision-perforated silicone membrane ensures high oxygen transfer efficiency with uniform bubble distribution. The diffuser design also helps prevent backflow, ensuring stable and long-term operation in wastewater treatment systems.

Fine Bubble Tube Diffuser

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Diffuser by Vasu Pharmatech is designed for efficient aeration with uniform fine bubble distribution and high oxygen transfer. This Fine Bubble Tube Diffuser uses EPDM/Silicone perforated membranes to handle high airflow, reduce energy consumption, and prevent backflow.

As a trusted Fine Bubble Tube Diffuser Manufacturer, Vasu Pharmatech provides durable and reliable diffusers for STP, ETP, fish farming, and aeration tank applications. Customers seeking the best Fine Bubble Diffuser Price and dependable Fine Bubble Diffuser Suppliers can rely on Vasu Pharmatech for quality performance.

Length: 1000 mm
Membrane Material: EPDM & Silicone
Air Flow Rate: 2 – 10 m³/hr
Bubble Size: Fine bubble
Pipe Connection: 3/4 inch BSP
Body Material: PP
Shape: Tube
Application: STP, ETP, Fish Farming, Aeration Tank
Country of Origin: India
Brand: Vasu Pharmatech

The precision-perforated membrane ensures high oxygen transfer efficiency with uniform bubble distribution. The diffuser design also helps prevent backflow, providing stable and long-term operation in wastewater treatment and aeration systems.

Vasu Pharmatech Membrane Diffuser

Get Latest Price

Product Brochure

Key Specifications

Membrane Diffuser by Vasu Pharmatech is a high-performance fine bubble aeration diffuser designed for efficient oxygen transfer in wastewater treatment systems. It produces uniform fine bubbles that increase dissolved oxygen levels, improve biological degradation, and reduce overall energy consumption.

This diffuser is ideal for use in STP, ETP, aeration tanks, and industrial biological reactors, ensuring reliable operation and long service life with stable performance.

Membrane Material: EPDM & Silicone
Diffuser Type: Disc
Bubble Size: Fine bubble
Air Flow Rate: 2 – 7.5 m³/hr
Size: 63 mm
Pipe Connection: 3/4 inch BSP
Body Material: PP
Application: ETP, Aeration Tank, STP
Max Pressure Allowed: 1.5 kg/cm²
Brand: Vasu Pharmatech

The precision-perforated membrane ensures uniform bubble distribution with high oxygen transfer efficiency, making it suitable for continuous and long-term aeration applications.

Air Diffuser for STP

Get Latest Price

Product Brochure

Key Specifications

Fine Bubble Diffuser by Vasu Pharmatech is a high-performance aeration solution designed for efficient oxygen transfer in wastewater treatment systems. This Fine Bubble Tube Diffuser produces uniform fine bubbles that increase dissolved oxygen levels, improve biological degradation, and reduce energy consumption.

As one of the trusted Fine Bubble Tube Diffuser Manufacturers, Vasu Pharmatech provides durable and reliable diffusers for STP, ETP, fish farming, and aeration tank applications. Customers looking for competitive Fine Bubble Diffuser Price and dependable Fine Bubble Diffuser Suppliers can rely on Vasu Pharmatech for consistent quality and long service life.

Length: 1020 mm
Membrane Material: EPDM & Silicone
Neck Size: 3/4 BSP
Air Flow Rate: 2 – 7.5 m³/hr
Bubble Size: Fine bubble
Size: 63 mm
Pipe Connection: 3/4 inch BSP
Diffuser Type: Tube
Body Material: PP
Application: Fish Farming, Aeration Tank, ETP, STP
Brand: Vasu Pharmatech

The precision-perforated membrane ensures uniform bubble distribution with high oxygen transfer efficiency, making it suitable for continuous and long-term aeration in wastewater and biological treatment systems.

Calculator

Diffuser Quantity Calculator

Total Air Flow Required (m³/hr)

Diffuser Type

Design Air Flow per Diffuser (m³/hr)

Safety Margin (%)

Please enter valid positive numbers.

Results

Base Diffusers Required:0 Nos.

Recommended Quantity:0 Nos.

Total Installed Capacity:0 m³/hr

Need Expert Consultation?

Connect with Vasu Pharmatech experts for instant guidance and requirements.

Click to Call WhatsApp

What is a Tubular Diffuser?

A tubular diffuser is an aeration device designed to release air into water in the form of fine or coarse bubbles. The bubbles help in oxygen transfer, which is essential for biological processes in wastewater treatment plants.

Unlike traditional stone or disc diffusers, tube diffusers are shaped like cylinders or tubes, usually made of high-quality silicon, EPDM, or PVC membranes. They are widely used for:

Biological wastewater treatment
Industrial effluent treatment plants
Sewage treatment plants (STP)
Aeration tanks and lagoons

Technical Specifications of Tubular Diffusers by Vasu Pharmatech

Vasu Pharmatech is known for delivering technically advanced fine bubble tubular diffusers that are durable and efficient. Below are the product specifications:

Parameter	Specification
Plan Settling Area (60° Slope)	11 m²/m³
Plan Settling Area (50° Slope)	13 m²/m³
Cross Sectional Area	120 mm x 44 mm
Material of Construction (MOC) / Colour	PVC / Black
Hydraulic Radius	15 mm
Thickness	1 mm ± 0.01 mm
Fitting Arrangement	Tongue & Groove
Max Continuous Operating Temperature	55° C

These details ensure that the diffuser performs optimally under different conditions, maintaining consistency and long service life.

How Does a Tubular Diffuser Work?

The working principle of a fine bubble diffuser tube is simple yet highly effective:

Air is supplied to the diffuser through blowers.
The membrane tube diffuser releases the air in the form of uniform fine bubbles.
These bubbles rise slowly, ensuring maximum oxygen transfer efficiency (OTE).
Oxygen helps aerobic microorganisms break down organic pollutants in the wastewater.

The tube bubble diffuser design ensures uniform distribution of air, reducing dead zones and improving biological treatment.

Types of Tubular Diffusers

1. Fine Bubble Tubular Diffuser

Produces very small bubbles (<2 mm diameter).
Offers high oxygen transfer efficiency.
Best suited for biological treatment in STPs and ETPs.

2. Coarse Bubble Tubular Diffuser

Produces larger bubbles (2–5 mm diameter).
Lower oxygen transfer but excellent for mixing and sludge reduction.
Used in high solid concentration environments.

3. Silicon Tube Diffuser

Made with high-grade silicon material.
Resistant to fouling and chemical scaling.
Performs well in long-term continuous operations.

4. Membrane Tube Diffuser

Uses EPDM, silicon, or polyurethane membranes.
Long-lasting with uniform bubble distribution.
Can handle variable airflows without tearing.

5. Hybrid Tube Diffuser

Combines fine and coarse bubble technology.
Provides both oxygen transfer and mixing capability.

Types Of Fine Bubble Diffusers

Applications of Tubular Diffusers

The versatility of tube diffusers makes them suitable for a wide range of applications:

Municipal Sewage Treatment Plants (STP)
Effluent Treatment Plants (ETP) in textile, pharma, and chemical industries
Fish farming and aquaculture aeration systems
Food & beverage wastewater treatment
Sludge stabilization in biological reactors
Aeration lagoons and equalization tanks

Advantages of Tubular Diffusers

High Oxygen Transfer Efficiency

Fine bubble tubular diffusers release millions of small bubbles, increasing oxygen transfer rates.

Energy Efficiency

Requires less blower power compared to coarse bubble systems.

Uniform Distribution

Even bubble release ensures no dead zones in the aeration tank.

Durability

Materials like PVC, EPDM, and silicon provide long service life.

Easy Installation

Tongue & Groove fitting arrangement ensures quick setup.

Cost-Effectiveness

Long lifespan reduces replacement costs, making it a cost-effective aeration solution.

Tubular Diffuser vs Alternatives

When compared to other diffusers, tubular diffusers stand out due to efficiency and durability.

Feature	Tubular Diffuser	Disc Diffuser	Plate Diffuser
Oxygen Transfer	High (Fine Bubbles)	Moderate	Moderate
Durability	High (PVC/Silicon)	Medium	Medium
Installation	Easy	Moderate	Difficult
Maintenance	Low	Medium	Medium
Cost	Competitive	Low	High

Factors Affecting Tube Diffuser Price

The tube diffuser price can vary depending on several factors:

Material used (Silicon, PVC, EPDM, etc.)
Type of diffuser (Fine bubble, coarse bubble, or hybrid)
Size and dimensions
Brand reputation
Operating temperature capacity
Customization options

Vasu Pharmatech provides highly competitive prices while ensuring quality and performance standards are never compromised.

Why Choose Vasu Pharmatech as Your Tubular Diffuser Manufacturer?

With years of experience, Vasu Pharmatech is one of the most trusted tubular diffuser manufacturers in India. Here’s why:

Advanced Technology – State-of-the-art production ensures consistent quality.
Custom Solutions – Diffusers tailored to client-specific applications.
Durability – Products designed for long-term use in harsh environments.
Energy Saving – High oxygen transfer reduces operational costs.
Competitive Pricing – Affordable without compromising on performance.
Proven Track Record – Trusted by multiple STPs, ETPs, and industrial clients.

Practical Example: Tubular Diffusers in STP

Imagine a municipal sewage treatment plant processing 10 MLD (million liters per day). If traditional disc diffusers are replaced with fine bubble tubular diffusers, the plant can achieve:

30–40% higher oxygen transfer efficiency

20% lower energy consumption

Reduced sludge production

Improved overall treatment efficiency

This practical application highlights the importance of choosing the right diffuser technology.

Maintenance & Best Practices

To ensure long life and consistent performance of tube diffusers:

Regular Cleaning – Prevents clogging due to biological growth.
Avoid Overloading – Do not exceed maximum operating temperature (55°C).
Periodic Inspections – Check for membrane wear and tear.
Use Quality Air Supply – Ensure no oil or dust enters the system.

Following these practices can extend diffuser life and reduce maintenance costs.

Future of Tubular Diffuser Technology

With increasing demand for sustainable wastewater treatment, tubular diffusers will continue to evolve. The focus will be on:

Nano-bubble technology for even higher oxygen transfer.
Eco-friendly materials for diffuser membranes.
Smart monitoring systems for real-time efficiency tracking.

Vasu Pharmatech is constantly innovating to stay ahead in this segment.

Conclusion

Choosing the right diffuser is crucial for wastewater treatment efficiency. Tubular diffusers not only improve oxygen transfer but also reduce operational costs and maintenance efforts.

With fine bubble tubular diffusers, silicon tube diffusers, and membrane tube diffusers, Vasu Pharmatech provides solutions that match global standards. Whether you are setting up a new STP or upgrading an existing system, investing in Vasu Pharmatech tubular diffusers ensures long-term reliability and performance.

Take the next step toward efficient wastewater treatment—choose Vasu Pharmatech as your trusted tubular diffuser manufacturer.

Tags : fab media, tube settler media, mbbr media manufacturer, tube deck media, fine bubble disc diffuser, mbbr media, tubular diffuser, coarse bubble diffuser, filter press machine, filter press cloth, filter press, mbbr, moving bed biofilm reactor, plate and frame filter press, tube settler

About The Author

Lalit Nankani
Managing Partner, Vasu Pharmatech

Lalit Nankani has over 12 years of experience in the filtration and water treatment industry. He leads Vasu Pharmatech, a trusted name in making PP Filter Press Systems, MBBR Filter Media, and other filtration products.

Under his leadership, the company has delivered high-quality solutions to many industries like pharmaceuticals, chemicals, food and beverage, textiles, and wastewater treatment. Lalit believes in providing strong, easy-to-use, and cost-effective systems that help businesses clean and reuse water.

In-House Manufacturing Images

Frequently Asked Questions

Q1. What is a tubular diffuser?

A tubular diffuser is an aeration device used in wastewater treatment plants to release air in the form of bubbles, improving oxygen transfer for biological treatment.

Q2. How does a tubular diffuser work?

It works by forcing air through a membrane tube, which then releases fine or coarse bubbles into the water to support microbial activity in treatment tanks.

Q3. What is the difference between fine bubble and coarse bubble tubular diffusers?

Fine bubble diffusers produce very small bubbles, offering higher oxygen transfer efficiency. Coarse bubble diffusers produce larger bubbles, which are better for mixing and sludge reduction.

Q4. Where are tubular diffusers used?

They are mainly used in sewage treatment plants (STP), effluent treatment plants (ETP), aquaculture systems, and industrial wastewater treatment.

Q5. What materials are tubular diffusers made from?

Common materials include PVC, silicon, EPDM rubber, and polyurethane. These materials ensure durability and resistance to fouling.

Q6. What are the advantages of using tubular diffusers?

They offer high oxygen transfer efficiency, energy savings, long service life, easy installation, and low maintenance.

Q7. How do tubular diffusers compare to disc diffusers?

Tubular diffusers provide better oxygen transfer, longer durability, and easier installation, while disc diffusers are cheaper but less efficient in the long run.

Q8. What is the lifespan of a tubular diffuser?

Depending on the material and usage conditions, a tubular diffuser can last between 5 to 8 years with proper maintenance.

Q9. What is the maximum operating temperature for tubular diffusers?

Most tubular diffusers, like those from Vasu Pharmatech, can operate continuously up to 55°C.

Q10. Are tubular diffusers suitable for high solid concentration wastewater?

Yes, coarse bubble tubular diffusers are well-suited for high solid and sludge-heavy environments.

Q11. How is the price of a tube diffuser determined?

The price depends on material, type (fine or coarse bubble), size, manufacturer, and customization options.

Q12. Can tubular diffusers be customized for different applications?

Yes, manufacturers like Vasu Pharmatech provide customized tubular diffusers based on tank size, airflow, and treatment needs.

Q13. How do I maintain tubular diffusers?

Regular cleaning, inspection for wear and tear, and using clean air supply help maintain performance.

Q14. What are silicon tube diffusers?

Silicon tube diffusers are tubular diffusers made from silicon, offering excellent resistance to fouling and long-term performance.

Q15. Why are fine bubble tubular diffusers more efficient?

They create tiny bubbles that rise slowly, ensuring maximum oxygen dissolution in water.

Q16. Do tubular diffusers reduce energy costs?

Yes, because they deliver higher oxygen transfer efficiency, they require less blower power, lowering overall energy consumption.

Q17. Can tubular diffusers be used in fish farming?

Yes, they are commonly used in aquaculture to maintain dissolved oxygen levels for healthy fish growth.

Q18. What is a membrane tube diffuser?

It is a diffuser with a flexible membrane (usually EPDM or silicon) that expands and contracts to release uniform bubbles.

Q19. How do I choose the right tubular diffuser for my plant?

Factors like wastewater type, tank size, airflow requirement, and treatment goals should be considered. Consulting a reliable manufacturer like Vasu Pharmatech ensures the best choice.

Q20. Why choose Vasu Pharmatech for tubular diffusers?

Because they provide high-quality, durable, and energy-efficient tubular diffusers backed by technical expertise and competitive pricing.

Products

We Have The Best Water Treatment Products

Vasu Pharmatech offers high-quality wastewater treatment products designed for efficient, reliable, and sustainable solutions.

Filter Press

A filter press uses plates to form filter cakes, separating slurry into filtrate.

FAB Media/MBBR Media

MBBR filter media: biologically active carrier tailored to water properties.

Tubedek Media

Tubedek Media: Efficient filtration solution for water treatment systems.

Coarse Bubble Diffusers

Coarse bubble diffuser: Submerged aeration for microbial degradation.

Fine Bubble Disc Diffusers

Fine bubble disc diffuser: Submerged aeration for microbial degradation.

Fine Bubble Tubular Diffusers

Fine bubble diffuser: Submerged aeration for microbial degradation.

Coarse Bubble Diffusers

Coarse bubble diffuser: Submerged aeration for microbial degradation.

Fine Bubble Tubular Diffuser

Fine bubble diffuser: Submerged aeration for microbial degradation.

Contact Us

+91 9811 838 359
+91 8109 609 900

testimonials

What Our Clients Say About Us

Verified Purchase

Vasu Pharmatech is truly one of the best companies in the industry.The quality of Diffuser, Tube Pac Media , Bio Pac Media & Filter Press is excellent. I am extremely satisfied with the product.The team is very supportive, professional, and always ready to help.If you are looking for top-quality Water & waste water product, reliable service, and a trustworthy company, Vasu Pharmatech is the perfect choice.
Highly recommended!

Verified Purchase

Excellent experience with Vasu Pharmatech. We sourced water treatment components (diffusers and tube deck media) from them, and the quality has been top-notch. The materials are durable and have improved the efficiency of our plant. Highly recommended for anyone looking for reliable STP/ETP equipment in India.

Verified Purchase

Vasu Pharmatech is a reliable and well-established company in the water and wastewater treatment industry. The quality of their products Air diffusers, Filter press, MBBR media, Tube Pac media and Tube settler media is consistently excellent and meets expected industry standards. The team is professional, cooperative, and responsive throughout the process. Orders are delivered on time as committed, and coordination is smooth.

Verified Purchase

Very good company and Staff is so nice & humble. Especially that one says “Good Morning Sir. How are You.” I have received my orders quickly and timely as committed with supplier. Diffuser & Membrane quality is up to the mark and Lalit Ji is too helpful.

Verified Purchase

Best product and service, timely response for all process.. nice experience with Vasu Pharmatech

Verified Purchase

Vasu Pharmatech is a best company in the manufacturing of Air Diffusers, Filter Press, MBBR Media and Tube Settler Media

Verified Purchase

Always received the supply of MBBR , Tubedeck media etc in right time right quantity and right place , totally satisfied with services and employees coordination is so 😊🙏🙏

Verified Purchase

Very nice service, excellent staff, Good comunication, timely response for all process..nice experience of dealing with them

Verified Purchase

All product are very good and after sales service support is very nice

Verified Purchase

Quality product and prompt service support

Verified Purchase

I bought air diffuser that’s good to use

Verified Purchase

Quality product, timely response, deliverd Timely

Verified Purchase

Product quality is very best.

Verified Purchase

Good in Product Quality & Services

Verified Purchase

Excellent services Vasu Pharmatech

Verified Purchase

The diffusers are performing very well

Verified Purchase

Great products and service

Verified Purchase

Excellent product quality

Verified Purchase

Very good company

Verified Purchase

Best service and materials

Verified Purchase

Good quality 👍

Verified Purchase

Good

Verified Purchase

Good

Verified Purchase

Coarse Bubble Diffuser ka aeration kaafi fast hai, kaam asaan ho gaya.

Verified Purchase

Tube Settler Media ka installation unke team ne jaldi complete kar diya.

Verified Purchase

Vasu Pharmatech ka Automatic Filter Press Machine time aur labor dono save karta hai.

Verified Purchase

FAB Reactor media ka biofilm growth uniform hai, kaafi achha experience.

Verified Purchase

Maine unka Filter Press for Sludge Dewatering liya, full value for money hai.

Verified Purchase

Inke Diffusers in STP reliable hai, paani ka treatment hassle free ho jata hai.

Verified Purchase

MBBR Bio Media ka price market competitive hai aur quality high.

Review Us On Google

Take a moment to review us on Google and let us know how we’re doing. Your feedback helps us improve and continue delivering the best solutions.

Click Here

★★★★★ 5/5

Reviews and Ratings

We certify that M/s. Vasu Pharmatech, located at 66B, Pocket AD Shalimar Bagh, Delhi-110088, supplied us with a Pharmatech filter press for our 275 KLD ETP plant at M/s. Asian Colour Coated Ispat Ltd. in Bawal, Dist: Rewari (Hr.). The plant was started in January 2018 and is still working well. The product and its performance have been satisfactory up to now.

ASIAN COLOUR COATED ISPAT LIMITED

Rewari, Haryana

Contact Us

Tubular Diffuser

Tube Settler Media

Our Range of Fine Bubble Tubular Diffusers

Fine Bubble Tubular Diffuser

Get Latest Price

Key Specifications

80mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Key Specifications

63 x 1000 mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Key Specifications

90 x 1000 mm EPDM Fine Bubble Tubular Diffuser

Get Latest Price

Key Specifications

63 x 1000mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Key Specifications

63 x 1020mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Key Specifications

90 x1000mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Key Specifications

90 x1020mm Silicone Fine Bubble Tubular Diffuser

Get Latest Price

Key Specifications

Fine Bubble Tube Diffuser

Get Latest Price

Key Specifications

Vasu Pharmatech Membrane Diffuser

Get Latest Price

Key Specifications

Air Diffuser for STP

Get Latest Price

Key Specifications

Diffuser Quantity Calculator

Results

Need Expert Consultation?

What is a Tubular Diffuser?

Technical Specifications of Tubular Diffusers by Vasu Pharmatech

How Does a Tubular Diffuser Work?

Types of Tubular Diffusers

1. Fine Bubble Tubular Diffuser

2. Coarse Bubble Tubular Diffuser

3. Silicon Tube Diffuser

4. Membrane Tube Diffuser

5. Hybrid Tube Diffuser

Types Of Fine Bubble Diffusers

Applications of Tubular Diffusers

Advantages of Tubular Diffusers

High Oxygen Transfer Efficiency

Energy Efficiency

Uniform Distribution

Durability

Easy Installation

Cost-Effectiveness

Tubular Diffuser vs Alternatives

Factors Affecting Tube Diffuser Price

Why Choose Vasu Pharmatech as Your Tubular Diffuser Manufacturer?

Practical Example: Tubular Diffusers in STP

Maintenance & Best Practices

Future of Tubular Diffuser Technology

Conclusion

About The Author

In-House Manufacturing Images

We Have The Best Water Treatment Products

What Our Clients Say About Us

Water Resource

Verified Purchase

Er. Vikas Shukla

Verified Purchase

ABHISHEK SAINI

Verified Purchase

Ajay Sharma

Verified Purchase

Sachin Rana

Verified Purchase

VISHAL SHUKLA

Thank You! We’ve Received Your Details
Our Expert Will Connect with You Soon.
