SPECIFICATION
mbbr
Size

12 x 25 mm & 4x25 mm

NO. OF HOLES

19 & 79

SURFACE AREA

>6OO m²/m³ & >16OO m²/m³

DENSITY

0.94 - 0.96 gm/cm³

DOSING RATIO

15% to 65%

MEMBRANE FORMING TIME

3-15 Days

MOC

VIRGIN HDPE

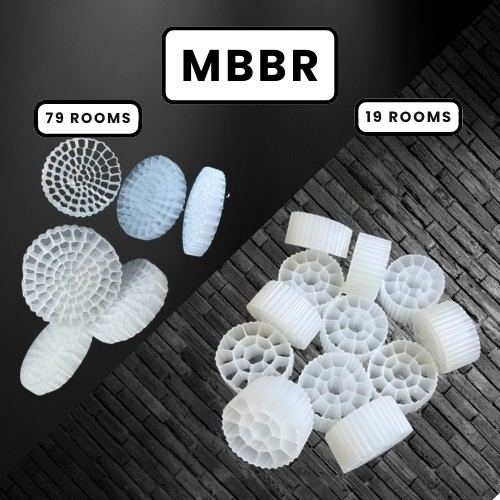

Types Of MBBR Media

vasu pharmatech

MBBR: A Complete Guide to Moving Bed Biofilm Reactor Technology

Wastewater treatment is one of the most important processes for industries, municipalities, and communities today. With increasing concerns about water pollution, environmental regulations, and the need for sustainable water reuse, advanced technologies like MBBR (Moving Bed Biofilm Reactor) have become essential. This process is reliable, efficient, and flexible, which makes it one of the most widely used wastewater treatment methods in modern times.

In this detailed guide, we will cover everything about MBBR, including how it works, its applications, key advantages, technical specifications, price factors, and why Vasu Pharmatech is a leading choice for MBBR filter media. The goal is to help you understand the importance of this technology and how it can benefit various industries.

MBBR Media Manufacturer

What is MBBR?

MBBR stands for Moving Bed Biofilm Reactor. It is an advanced biological wastewater treatment method that uses specially designed plastic carriers called MBBR media. These carriers provide a large protected surface area for microorganisms to grow and attach themselves as biofilm.

Unlike conventional wastewater treatment systems where microorganisms float freely in water, MBBR keeps microbes attached to small carriers that keep moving continuously inside the reactor tank. The constant movement ensures even mixing, better contact between wastewater and microorganisms, and enhanced pollutant removal efficiency.

MBBR systems are used in both municipal sewage treatment plants (STPs) and industrial effluent treatment plants (ETPs).

How Does MBBR Work?

The working of MBBR technology can be explained in a simple step-by-step way:

  1. Wastewater Entry â€“ Untreated sewage or industrial effluent enters the reactor tank.
  2. Biofilm Formation â€“ Microorganisms gradually grow and attach to the specially designed MBBR carriers. This takes around 3 to 15 days to form stable biofilm.
  3. Continuous Aeration â€“ An aeration system keeps the carriers moving while supplying oxygen to the microbes. This maintains uniform mixing and prevents clogging.
  4. Pollutant Breakdown â€“ As water passes through, microbes degrade organic matter, nitrogen compounds, and other contaminants.
  5. Clarification â€“ The treated water moves to a settling or clarification tank where solids are separated, leaving behind clean water.
  6. Discharge or Reuse â€“ The final treated water is discharged safely or reused for industrial and domestic purposes.

This process is completely natural and eco-friendly, relying on microbial growth rather than harsh chemicals.

Applications of MBBR

MBBR technology finds wide application across multiple sectors:

  • Municipal Sewage â€“ Treating wastewater generated by cities and towns.
  • Residential Complexes â€“ Compact sewage treatment within societies.
  • Hotels and Resorts â€“ On-site sewage treatment to meet pollution norms.
  • Hospitals â€“ Effective treatment of medical wastewater.
  • Food and Beverage Industry â€“ To manage organic effluents and wash water.
  • Pharmaceutical Industry â€“ For handling high-COD wastewater.
  • Chemical Industry â€“ For breakdown of complex industrial effluents.
  • Textiles and Dye Industry â€“ To reduce pollutants before discharge.

Key Technical Specifications of Vasu Pharmatech MBBR Media

Vasu Pharmatech supplies high-performance MBBR filter media that is widely used in effluent treatment plants. The media specifications are:

ParameterOption 1Option 2
Size12 x 25 mm4 x 25 mm
No. of Holes1979
Surface Area>600 m²/m³>1600 m²/m³
Density0.94 – 0.96 gm/cm³0.94 – 0.96 gm/cm³
Dosing Ratio15% to 65%15% to 65%
Membrane Forming Time3 – 15 days3 – 15 days
MOCVirgin HDPEVirgin HDPE


Highlights:

  • Virgin HDPE material for durability and long life.
  • High surface area that allows more biofilm growth.
  • Balanced density so the media floats easily in water.
  • Quick membrane forming for faster plant commissioning.
  • Adjustable dosing ratios as per treatment capacity.

Types of MBBR Systems

MBBR technology is versatile and can be adapted for different applications. The most common types include:

MBBR Reactor : A core unit designed with MBBR carriers and aeration system. It is used in both domestic and industrial treatment plants.

MBBR STP (Sewage Treatment Plant) : Specially designed for residential colonies, housing societies, hospitals, schools, hotels, and municipal facilities. It helps reduce BOD (Biochemical Oxygen Demand) and COD (Chemical Oxygen Demand), improving the quality of sewage water.

Industrial MBBR Wastewater Treatment : Used in industries like pharmaceuticals, chemicals, textiles, and food processing where wastewater contains complex pollutants. These customized systems handle high load variations effectively.

MBBR Water Treatment Units : Used for purifying contaminated surface water or groundwater before it is reused or supplied for domestic use.

Applications of MBBR

MBBR technology finds wide application across multiple sectors:

  • Municipal Sewage â€“ Treating wastewater generated by cities and towns.
  • Residential Complexes â€“ Compact sewage treatment within societies.
  • Hotels and Resorts â€“ On-site sewage treatment to meet pollution norms.
  • Hospitals â€“ Effective treatment of medical wastewater.
  • Food and Beverage Industry â€“ To manage organic effluents and wash water.
  • Pharmaceutical Industry â€“ For handling high-COD wastewater.
  • Chemical Industry â€“ For breakdown of complex industrial effluents.
  • Textiles and Dye Industry â€“ To reduce pollutants before discharge.

Advantages of MBBR

MBBR systems are increasingly preferred due to their multiple benefits:

  • Compact Design â€“ Requires less space compared to conventional activated sludge systems.
  • Low Sludge Generation â€“ Reduces sludge handling, making operations easier.
  • High Efficiency â€“ Removes BOD, COD, and other pollutants effectively.
  • Low Maintenance â€“ Media carriers are self-cleaning and reduce clogging issues.
  • Fast Biofilm Growth â€“ Microorganisms attach quickly to media, starting treatment faster.
  • Flexible Addition â€“ Can be retrofitted into existing STP or ETP systems to improve performance.
  • Energy Efficient â€“ Requires lower power input compared to some other treatment technologies.
  • Durable Media â€“ Virgin HDPE material ensures long life in water treatment.

MBBR vs Other Wastewater Treatment Technologies

To understand its advantages, let’s compare MBBR with Conventional Activated Sludge Processes and Fixed Bed Reactors:

FeatureMBBRActivated SludgeFixed Bed Reactor
FootprintCompactLargeModerate
BiofilmOn moving carriersSuspendedOn fixed surfaces
SludgeLowHighModerate
FlexibilityHighLowLow
MaintenanceLowHighModerate
Start-up Time3-15 days20-30 days15-25 days


This shows why MBBR is widely used. It reduces both operational costs and space requirements while being more efficient in real-world conditions.

Factors Affecting MBBR Price

The MBBR price depends on several important parameters:

  • Type and surface area of media â€“ More holes and higher surface area improves efficiency but can increase cost.
  • Reactor size and design capacity â€“ Larger systems cost more, depending on MLD (Million Liters per Day).
  • Application type â€“ Domestic sewage treatment may cost less than heavy industrial applications.
  • Dosing ratio required â€“ Higher dosing requires more media, raising costs.
  • Installation and operation costs â€“ Pumps, blowers, tanks, and labor influence total price.

Though the initial investment can be higher compared to conventional systems, the operational cost savings and long-term durability make MBBR technology a more economical choice.

mbbr media

Why Vasu Pharmatech for MBBR Media?

Vasu Pharmatech is a well-recognized manufacturer of MBBR filter media and water treatment products. Their products are made using Virgin HDPE, ensuring high strength, chemical resistance, and long operational life.

Reasons to choose Vasu Pharmatech:

  • Wide range of MBBR media sizes and surface areas.
  • High durability and quick biofilm formation.
  • Proven track record in supplying to both STPs and ETPs.
  • Industry expertise in designing and recommending the right dosing ratios.
  • Cost-effective pricing compared to other suppliers.

Customers from multiple industries trust Vasu Pharmatech for reliable performance and consistent quality.

Example: Real-Life MBBR Implementation

Let’s consider a mid-sized textile manufacturing company. They faced challenges with high COD and color in their wastewater. Their conventional system was not sufficient to meet local discharge norms.

After installing MBBR media from Vasu Pharmatech:

  • COD levels reduced by over 80%.
  • Color and odor in wastewater dropped significantly.
  • Sludge generated was 40% lower than before.
  • Plant compliance was maintained with reduced operational costs.

This example demonstrates how MBBR reactors deliver practical, real-world results.

Design and Installation Considerations

When installing an MBBR system, certain factors need to be carefully addressed for maximum efficiency:

  • Correct dosing ratio of media depending on pollution load.
  • Aeration system design to ensure proper mixing.
  • Tank sizing for handling minimum and maximum water flow rates.
  • Retention time to allow complete biodegradation.
  • Separation/clarification system for sludge generated.

With proper planning and the right quality media, even small plants can achieve higher efficiency with MBBR technology.

The Future of MBBR Technology

As industries expand and environmental standards become stricter, demand for compact and efficient wastewater solutions will continue to rise. MBBR is expected to play a central role due to its:

  • Flexibility to handle variations in wastewater loads.

  • Ability to retrofit into existing systems.

  • Long-term cost-effectiveness.

  • Eco-friendly nature with reduced sludge handling.

Vasu Pharmatech’s high-quality MBBR filter media can help businesses, residential societies, and municipal bodies meet sustainability goals while saving costs.

Conclusion

MBBR technology is one of the most effective and sustainable solutions for wastewater and sewage treatment today. Its unique use of moving biofilm carriers makes it more efficient, compact, and cost-effective than conventional systems. Industries and communities worldwide are increasingly adopting MBBR for cleaner water and compliance with pollution norms.

Vasu Pharmatech’s MBBR media offers excellent performance, durability, and efficiency, making it the right choice for industries and STPs. By choosing this solution, you not only reduce treatment costs but also contribute to a cleaner and greener environment.

Untitled design (2)

About The Author

Lalit Nankani
Managing Partner, Vasu Pharmatech

Lalit Nankani has over 12 years of experience in the filtration and water treatment industry. He leads Vasu Pharmatech, a trusted name in making PP Filter Press Systems, MBBR Filter Media, and other filtration products.

Under his leadership, the company has delivered high-quality solutions to many industries like pharmaceuticals, chemicals, food and beverage, textiles, and wastewater treatment. Lalit believes in providing strong, easy-to-use, and cost-effective systems that help businesses clean and reuse water.

Q.1 What is MBBR in wastewater treatment?

MBBR stands for Moving Bed Biofilm Reactor. It is a biological wastewater treatment process where microorganisms grow on floating carrier media to remove pollutants like BOD and COD effectively.

An MBBR reactor uses biofilm carriers that move constantly in wastewater. Microbes attach to these carriers and degrade organic pollutants when aeration supplies oxygen.

Unlike activated sludge where microbes remain suspended, MBBR supports attached growth on carriers, making it more compact, efficient, and low in sludge production.

MBBR is used in sewage treatment plants (STPs), effluent treatment plants (ETPs), and industrial wastewater treatment for pharmaceuticals, textiles, food, and chemicals.

MBBR STP is a sewage treatment plant that uses carrier-based biofilm technology to clean domestic sewage in apartments, hotels, schools, hospitals, and municipalities.

MBBR media are small HDPE-based plastic carriers designed with high surface area and multiple holes for microbes to grow and clean wastewater.

Depending on type and size, MBBR media offers more than 600 m²/m³ to 1600 m²/m³ surface area for efficient microbial growth.

The dosing ratio ranges between 15% and 65% of the tank volume, depending on wastewater strength and treatment capacity.

It usually takes about 3 to 15 days for biofilm to fully form on MBBR filter media after being introduced in the tank.

The price of MBBR depends on reactor size, media surface area, dosing ratio, and whether it is used for industrial or domestic applications.

Most high-quality MBBR media is made from Virgin HDPE, which is lightweight, chemical-resistant, and long-lasting.

MBBR media keeps moving inside reactors due to aeration, preventing clogging, while fixed bed biofilm reactors face fouling issues.

MBBR is compact, efficient, flexible, produces low sludge, requires low maintenance, and can treat high pollutant loads effectively.

Yes, MBBR is widely used in chemical, pharmaceutical, textile, and food industries to treat complex effluents with high COD and BOD.

The density of MBBR media is around 0.94–0.96 gm/cm³, allowing it to float and move freely in water.

Yes, MBBR systems can be retrofitted into older STPs and ETPs to increase treatment efficiency and reduce BOD/COD.

MBBR requires low maintenance because carriers are self-cleaning, reducing choking issues and ensuring long-term performance.

MBBR can treat sewage, municipal wastewater, industrial effluents, nitrogen-rich water, pharmaceutical waste, and food industry discharges.

Yes, MBBR uses less energy than activated sludge systems since it has a smaller footprint and produces less sludge.

Vasu Pharmatech provides Virgin HDPE-based MBBR media with high surface area, quick biofilm growth, durability, and competitive pricing.
