If you’ve ever designed an MBBR system, you already know this—media sizing is where everything can go wrong.
Too little media, and your system fails to meet discharge norms. Too much, and you’ve just increased project cost without any real benefit. This balancing act is exactly why mbbr media calculation is one of the most critical steps in wastewater treatment design.
The problem? Manual calculations are time-consuming, assumption-heavy, and prone to error—especially when dealing with variables like BOD load, SALR, surface area, and fill fraction.

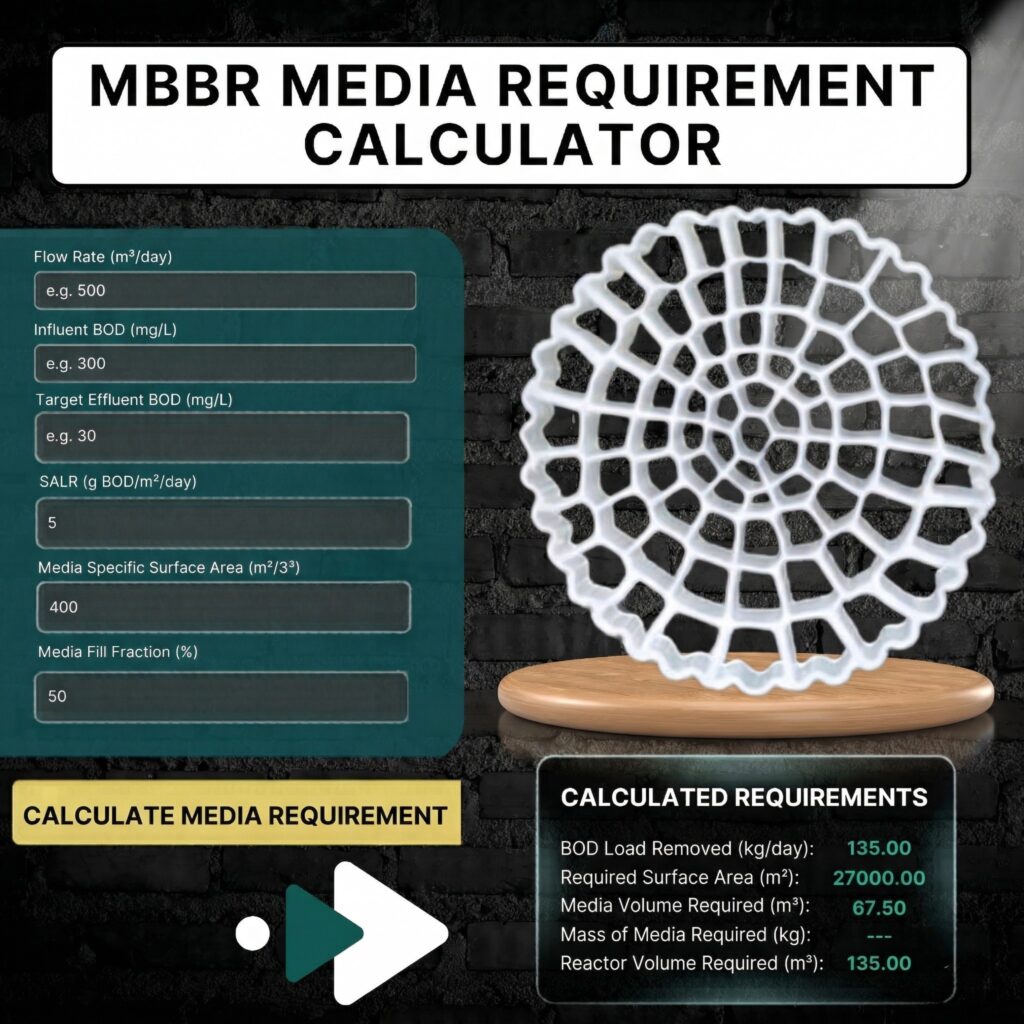

That’s where the MBBR Media Requirement Calculator by Vasu Pharmatech comes in.
Built for engineers, consultants, and plant designers, this tool simplifies complex mbbr media quantity calculation into a fast, reliable output. Whether you’re working on STP, ETP, or even mbbr media calculation for fish farming, this calculator helps you design smarter—without guesswork.

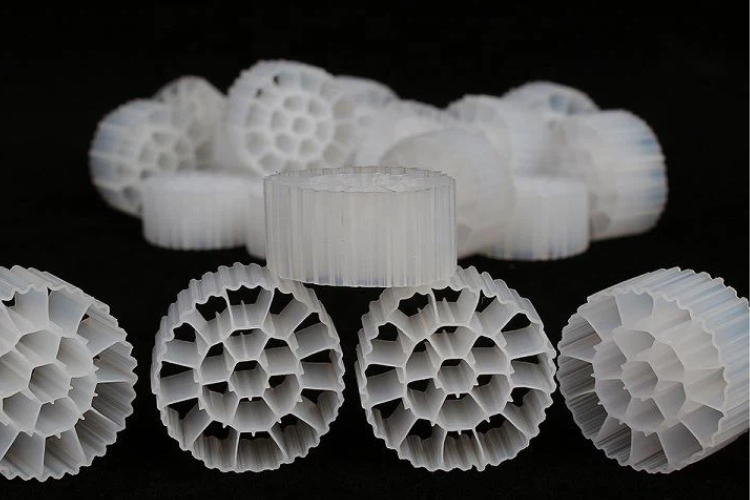

MBBR Media by Vasu Pharmatech MBBR media is a novel biologically active carrier, it adopts scientific formula, depending on the
nature of water.
MBBR technology is more advanced & dominant in compar ison to the suspended growth
process.
It allows bacteria to stick to the surface to form biofilm.
Available Models
MBBR Media – 19 Rooms by Vasu Pharmatech is an efficient bio-carrier designed for biological wastewater treatment in STP, ETP, aquaculture, and industrial applications. Manufactured from high-quality HDPE, it provides a stable surface for biofilm growth and improves treatment efficiency.
This 19 Rooms MBBR Media supports fast biofilm formation (3–15 days), efficient BOD/COD reduction, and reliable nitrification performance in aeration tanks.
MBBR 19 Rooms Media by Vasu Pharmatech is a high-efficiency bio-carrier designed for wastewater treatment in ETP, STP, aquaculture, fish farming, and industrial applications. Also known as MBBR Media, it provides a large surface area for biofilm growth, improving microbial activity and treatment efficiency. With its optimized design, biofilm formation is achieved within 3–15 days.
Vasu Pharmatech’s MBBR 19 Rooms Media ensures compact, efficient wastewater treatment with excellent BOD/COD reduction, superior impact strength, and optimal conditions for microbial growth.
MBBR Media – 19 Rooms (VPPFM 1225) by Vasu Pharmatech is a high-performance bio-carrier developed for efficient wastewater treatment and strong biofilm growth. Also known as MBBR Media, it provides a large effective surface area for bacterial attachment, enabling faster degradation of organic pollutants and stable treatment performance. Manufactured from virgin HDPE, it offers excellent durability, high impact strength, and a long service life.
Vasu Pharmatech’s 19 Rooms MBBR Media (VPPFM 1225) is ideal for municipal and industrial wastewater treatment systems, ensuring improved biological efficiency, reliable operation, and long-term performance.
FAB MBBR Media by Vasu Pharmatech is an efficient bio-carrier for wastewater treatment. Also known as MBBR Media, MBBR Filter Media, or FAB Media, it offers high surface area for strong biofilm growth and faster treatment.
Made from virgin HDPE, this media is durable, chemical-resistant, and ideal for STP, ETP, municipal, industrial, and aquaculture applications. As a trusted MBBR Media Manufacturer, Vasu Pharmatech ensures long-lasting and reliable performance.
As a trusted MBBR Media Manufacturer, Vasu Pharmatech delivers high-performance FAB MBBR Media for efficient and stable biological wastewater treatment.

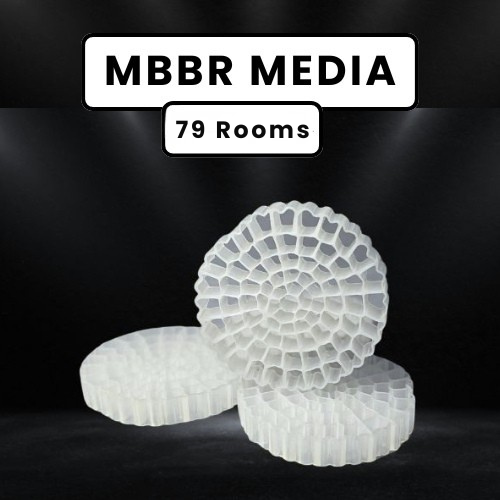

MBBR Media – 79 Rooms (VPMF 415) by Vasu Pharmatech is a durable and high-efficiency bio-carrier for wastewater treatment applications. Made from virgin HDPE, it supports fast biofilm formation and long service life.
This 79 Rooms MBBR Media ensures efficient oxygen transfer, strong biomass growth, and stable wastewater treatment performance.
MBBR Media – 79 Rooms (Wheel Type) by Vasu Pharmatech is a high-efficiency bio-carrier designed for advanced biological wastewater treatment. Manufactured from HDPE with a wheel-shaped structure, it provides a large effective surface area and high void ratio for strong biofilm development.
This 79 Rooms Wheel-Type MBBR Media offers faster biofilm formation, improved oxygen transfer, and efficient wastewater treatment compared to conventional suspended growth processes.
MBBR Media – 79 rooms by Vasu Pharmatech is a high-efficiency bio-carrier developed for advanced wastewater treatment applications. It offers a large effective surface area that supports rapid biofilm formation and faster treatment performance. Manufactured from HDPE, this media is durable, chemical-resistant, and suitable for long-term operation.
This 79 Rooms MBBR Media ensures efficient biological treatment and reliable performance in municipal and industrial wastewater systems.
MBBR 79 Rooms Media by Vasu Pharmatech is a high-efficiency bio-carrier designed for enhanced biofilm growth in wastewater treatment, aquaculture, and industrial applications. Also known as MBBR Media or MBBR Biofilm Carrier, it offers a large specific surface area to increase active biomass and improve treatment performance. With its optimized rooms design, it ensures stable biofilm formation within 3–15 days.
Vasu Pharmatech’s MBBR 79 Rooms Media is trusted for its durability, chemical resistance, and superior biofilm growth capability, making it ideal for municipal, industrial, and aquaculture wastewater treatment systems.
An MBBR Calculator is used for preliminary sizing of a Moving Bed Biofilm Reactor. MBBR technology uses specially designed carrier media that moves continuously inside an aerated biological reactor. Microorganisms grow as biofilm on the protected surfaces of this media.
As wastewater moves through the reactor, microorganisms consume biodegradable pollutants. Depending on the process configuration, the system can support organic matter removal and biological nitrification.
The amount of biofilm surface area available inside the reactor is therefore an important design factor. An MBBR Calculator helps connect the pollutant load entering the system with the biological surface area needed for treatment.
The calculation can help estimate:
These values provide engineers with useful preliminary information before detailed system design.
MBBR system performance depends heavily on maintaining an appropriate balance between biological loading and available biofilm area.
If insufficient media is installed, there may not be enough active surface area to support the required microbial population. This can reduce biological treatment efficiency, particularly when wastewater loads increase.
Adding excessive media is also not automatically beneficial. Carrier media needs sufficient space for movement. Aeration, mixing, oxygen transfer, tank geometry, and media retention systems must work together.
An MBBR Size Calculator helps designers evaluate these factors more systematically instead of selecting media only according to tank volume.
Accurate calculation becomes particularly valuable when designing a new wastewater treatment plant, upgrading an existing STP or ETP, increasing treatment capacity, selecting alternative MBBR media, or planning an aquaculture biofilter.
| Step | Description | Result |
|---|---|---|
|
1 |
BOD Removal |
270 mg/L |
|
2 |
Load Removed |
135 kg/day |
|
3 |
Required Surface Area |
3,500 m² |
|
4 |
Media Volume |
27 m³ |
|
5 |
Reactor Volume |
54 m³ |
👉 Required Media = 27 m³
This is exactly what the MBBR Media Requirement Calculator delivers instantly—without manual effort.
An MBBR Surface Area Calculator determines approximately how much biofilm attachment area is required to handle the biological load.
This is important because MBBR performance is strongly related to the microorganisms growing on carrier surfaces. More useful biological surface area can support a larger attached microbial population, provided that sufficient oxygen, substrate, nutrients, and hydraulic conditions are available.
However, engineers should not select media only by looking for the highest surface-area number.
Total geometric surface area and protected or effective surface area may not represent the same thing. Protected internal surfaces can provide stable locations for biofilm growth while reducing excessive biofilm loss caused by carrier collisions and shear.
For this reason, the surface-area specification entered into an MBBR Calculator should correspond to the design methodology being used.
An MBBR Size Calculator helps convert required media volume into approximate reactor volume.
The simplified relationship is:
Reactor Volume = Required Media Volume ÷ Media Filling Fraction
Suppose the calculation shows that 30 m³ of media is required and the selected filling fraction is 50%.
Reactor Volume = 30 ÷ 0.50
Reactor Volume = 60 m³
This gives a preliminary reactor-volume requirement.
The final reactor size should not be determined from this calculation alone. Engineers must also evaluate hydraulic retention time, peak wastewater flow, oxygen requirements, carrier movement, aeration arrangement, tank geometry, freeboard, and media retention screens.
Therefore, an MBBR Size Calculator should be considered a preliminary process-design tool rather than a substitute for detailed engineering.
An MBBR Volume Calculator can be particularly useful for existing tanks.
If a reactor already has a known working volume, the approximate carrier volume can be calculated as:
Media Volume = Reactor Working Volume × Media Filling Fraction
For example, consider a 100 m³ reactor operating with a proposed 40% media filling fraction.
Media Volume = 100 × 0.40 = 40 m³
The next step is checking how much biological surface area this media provides.
Available Surface Area = Media Volume × Relevant Media Surface Area
This value can then be compared with the surface area required for the actual biological load.
This two-stage evaluation is important because determining how much carrier fits inside a tank does not confirm that the carrier provides enough treatment capacity.
| Media Type | Surface Area (m²/m³) | Application |
|---|---|---|
|
Wastewater Flow |
Represents hydraulic loading |
Determines daily pollutant load |
|
Influent BOD |
Indicates wastewater organic strength |
Influences biological load |
|
Target BOD |
Defines treatment requirement |
Determines required removal |
|
Surface Loading |
Represents design treatment capacity |
Determines required biofilm area |
|
Media Surface Area |
Defines area available per media volume |
Determines carrier requirement |
|
Indicates media percentage in reactor |
Indicates media percentage in reactor |
Influences reactor sizing |
Carrier selection has a major impact on the MBBR Calculator result because different media designs provide different surface areas and physical characteristics.
vasupharmatech offers MBBR/FAB media options including approximately 12 × 25 mm and 4 × 25 mm configurations. Depending on the media type, surface-area specifications can exceed approximately 600 m²/m³ and 1600 m²/m³, with media dosing selected according to application and engineering requirements.
A higher surface area can provide more potential biofilm attachment area within a given carrier volume. However, carrier selection should also consider protected area, geometry, movement, durability, hydraulic behaviour, and compatibility with the reactor.
The selected media specification should therefore be entered into the MBBR Surface Area Calculator rather than using a generic value for every project.
A Fish Farming MBBR Calculator applies biofilm calculation principles to aquaculture and recirculating aquaculture systems.
Fish metabolism, feed, uneaten organic material, and waste can generate ammonia and other pollutants. Biological filtration is therefore important for maintaining suitable water conditions.
In an MBBR biofilter, nitrifying bacteria can establish on carrier surfaces and support biological ammonia conversion.
Unlike a standard wastewater MBBR calculation based primarily on BOD, a Fish Farming MBBR Calculator may consider:
The general calculation sequence becomes:
Fish/Feed Load → Nitrogen Generation → Required Nitrification Capacity → Biofilm Surface Area → MBBR Media Volume
Designing for future fish biomass is particularly important because biological loading can increase substantially as fish grow.
An MBBR Calculator can support many biological wastewater treatment applications.
In sewage treatment plants, it helps determine approximate media and reactor requirements for organic removal and appropriate biological treatment objectives.
Industrial ETP projects can use an MBBR Size Calculator to evaluate wastewater from food processing, beverages, pharmaceuticals, manufacturing, and other industries. Industrial wastewater should be characterized carefully because pollutant concentration can fluctuate significantly.
For existing treatment plants, an MBBR Volume Calculator can help evaluate whether additional biological capacity may be achievable within available tank volume.
Aquaculture operators can use a Fish Farming MBBR Calculator to evaluate biofilter requirements according to fish biomass and nitrogen loading.
Hotels, hospitals, residential developments, institutions, and commercial facilities can also use MBBR-based biological treatment where compact and scalable treatment systems are required.
One common mistake is using unreliable wastewater data. Representative wastewater testing provides a stronger basis for calculation than assumptions taken from unrelated treatment plants.
Another mistake is using total surface area when the process calculation requires an effective or protected surface-area specification.
Engineers should also avoid applying one biological loading rate to every application. Sewage, industrial wastewater, and aquaculture systems can have very different biological conditions.
Media filling percentage should not be increased without evaluating movement and oxygen transfer. More media inside the reactor does not automatically mean better treatment.
Most importantly, an MBBR Calculator should not be treated as a complete wastewater treatment plant design. Aeration, hydraulics, clarification, sludge handling, pumps, screens, and process controls still require engineering evaluation.
A calculated media quantity alone cannot guarantee treatment performance.
Aeration is critical because aerobic microorganisms require dissolved oxygen. The aeration system must also provide sufficient mixing to keep MBBR carriers moving through the active reactor volume.
Media retention screens are another important consideration. They prevent carrier media from escaping with treated water while allowing sufficient hydraulic flow.
Temperature can influence microbial activity, particularly during nitrification. A system designed only around favourable temperatures may not provide the same performance under colder operating conditions.
Wastewater variability should also be considered. Industrial facilities can experience changes in BOD, COD, pH, flow, nutrients, and other characteristics as production conditions change.
vasupharmatech supports water and wastewater treatment applications with MBBR/FAB carrier media and related treatment components.
Different MBBR media configurations allow project engineers to select carriers according to required surface area, reactor volume, wastewater loading, and treatment objectives. This flexibility is important because media characteristics directly influence the results produced by an MBBR Calculator.
For STP, ETP, industrial wastewater, biological treatment, and other water-treatment projects, proper carrier selection can support efficient use of reactor space and long-term process scalability.
The combination of technical product options and application-focused selection can help consultants, contractors, plant operators, and project developers make better decisions during preliminary treatment-system planning.
As industries expand and environmental standards become stricter, demand for compact and efficient wastewater solutions will continue to rise. MBBR is expected to play a central role due to its:
Flexibility to handle variations in wastewater loads.
Ability to retrofit into existing systems.
Long-term cost-effectiveness.
Eco-friendly nature with reduced sludge handling.
Vasu Pharmatech’s high-quality MBBR filter media can help businesses, residential societies, and municipal bodies meet sustainability goals while saving costs.
An MBBR Calculator is a valuable tool for estimating the biological surface area, carrier volume, and reactor capacity required for Moving Bed Biofilm Reactor applications. It provides engineers with a structured way to connect wastewater flow, pollutant concentration, treatment targets, biological loading, media surface area, and reactor filling requirements.
An MBBR Surface Area Calculator can determine approximate biofilm area requirements, while an MBBR Size Calculator and MBBR Volume Calculator help convert those requirements into practical media and reactor estimates. For aquaculture projects, a Fish Farming MBBR Calculator can support biological filtration planning according to nitrogen load and future production requirements.
The strongest results come from combining accurate calculations with representative wastewater data, suitable MBBR media, proper aeration, effective mixing, and complete process engineering.
Lalit Nankani
Managing Partner, Vasu Pharmatech
Lalit Nankani has over 12 years of experience in the filtration and water treatment industry. He leads Vasu Pharmatech, a trusted name in making PP Filter Press Systems, MBBR Filter Media, and other filtration products.
Under his leadership, the company has delivered high-quality solutions to many industries like pharmaceuticals, chemicals, food and beverage, textiles, and wastewater treatment. Lalit believes in providing strong, easy-to-use, and cost-effective systems that help businesses clean and reuse water.
An MBBR Calculator is a technical calculation tool used to estimate MBBR media quantity, biological surface area, and reactor volume for a Moving Bed Biofilm Reactor system. The MBBR Calculator typically uses wastewater flow, influent BOD, required BOD removal, surface loading rate, media surface area, and filling percentage. By using an accurate MBBR Surface Area Calculator and MBBR Volume Calculator, engineers can estimate how much carrier media and reactor capacity may be required for effective wastewater treatment.
MBBR media volume can be calculated after determining the total biofilm surface area required for treatment. An MBBR Volume Calculator uses the required surface area and the effective surface area provided by the selected MBBR media. A simplified formula is: MBBR Media Volume = Required Surface Area ÷ Media Surface Area per m³. An MBBR Calculator can simplify this process and help engineers compare different media specifications before finalizing the MBBR system design.
An MBBR Surface Area Calculator is used to estimate the biological surface area required for microorganisms to treat the expected wastewater load. The calculator considers pollutant loading, required removal efficiency, and suitable biological loading rates. Because MBBR treatment depends heavily on biofilm growing on carrier media, an accurate MBBR Surface Area Calculator is an important part of the overall MBBR Calculator process. The result can then be used to calculate the required MBBR media volume.
An MBBR Size Calculator can estimate the required reactor volume based on the amount of MBBR media and the selected filling fraction. A basic formula is: Reactor Volume = MBBR Media Volume ÷ Media Filling Fraction. However, an MBBR Calculator should also consider hydraulic retention time, wastewater flow, peak loading, oxygen transfer, mixing requirements, and treatment objectives. An MBBR Size Calculator therefore provides a preliminary estimate that should be validated through proper engineering design.
An MBBR Calculator generally requires wastewater flow rate, influent BOD concentration, target outlet BOD, biological loading rate, MBBR media surface area, and media filling percentage. For more advanced calculations, temperature, dissolved oxygen, COD, ammonia, nitrogen loading, and peak flow may also be required. Accurate input data improves the reliability of the MBBR Surface Area Calculator, MBBR Size Calculator, and MBBR Volume Calculator results.
Yes, a Fish Farming MBBR Calculator can be used for aquaculture and recirculating aquaculture systems. Unlike a conventional wastewater MBBR Calculator, a Fish Farming MBBR Calculator often considers fish biomass, daily feed quantity, ammonia production, nitrogen load, water temperature, dissolved oxygen, and nitrification requirements. The Fish Farming MBBR Calculator then estimates the biological surface area and MBBR media volume required to support stable biological filtration.
MBBR surface area is generally calculated by dividing the biological pollutant load that must be removed by an appropriate surface loading rate. An MBBR Surface Area Calculator performs this calculation using wastewater flow, influent concentration, outlet requirement, and biological loading assumptions. After calculating the required surface area, an MBBR Calculator converts this value into media volume using the relevant surface-area specification of the selected carrier media.
The suitable MBBR media filling percentage depends on media design, reactor configuration, wastewater loading, aeration capacity, and treatment objectives. An MBBR Volume Calculator and MBBR Size Calculator can help evaluate how different filling percentages affect media quantity and reactor volume. The filling percentage should allow sufficient carrier movement, wastewater contact, and oxygen transfer. An MBBR Calculator should therefore be used together with engineering evaluation rather than selecting a filling percentage randomly.
Yes, an MBBR Calculator can be used for both Sewage Treatment Plant and Effluent Treatment Plant applications. In STP projects, the MBBR Surface Area Calculator can estimate media requirements for domestic sewage treatment. In ETP projects, an MBBR Size Calculator or MBBR Volume Calculator can help evaluate industrial wastewater treatment requirements. Because industrial wastewater characteristics can vary significantly, accurate laboratory data should be used before performing an MBBR calculation.
Using an MBBR Calculator before selecting carrier media helps ensure that media quantity is based on actual biological treatment requirements instead of simple assumptions. An MBBR Surface Area Calculator identifies the approximate biofilm area needed, while an MBBR Volume Calculator converts that area into carrier volume. An MBBR Size Calculator can then help estimate the reactor capacity required. This structured calculation process supports better MBBR media selection, efficient reactor utilization, reliable treatment performance, and long-term system scalability.
